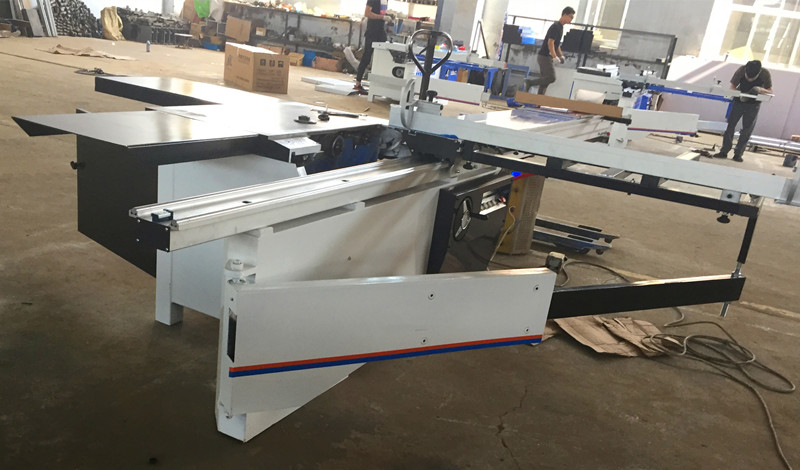

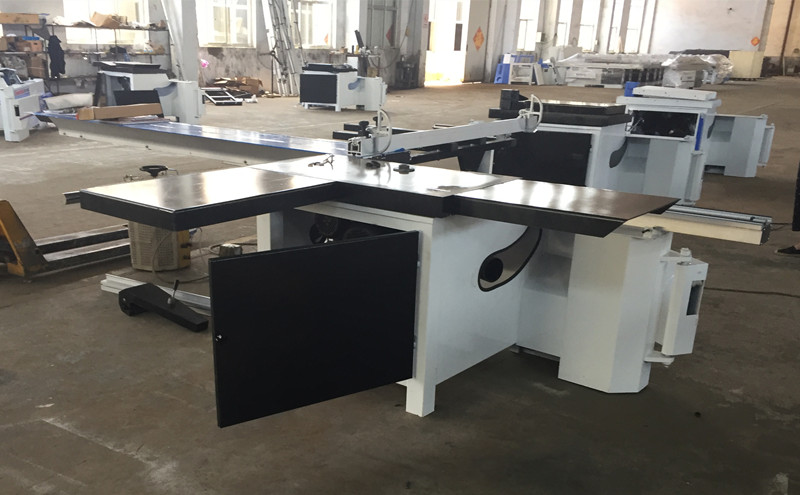

sliding table saw wood cutting panel saw machine

We have series of sliding table saw. This is a saw blade Angle of 45 degrees .

The length of the platform is 2.8  meters. We can produce many size platfrom length.

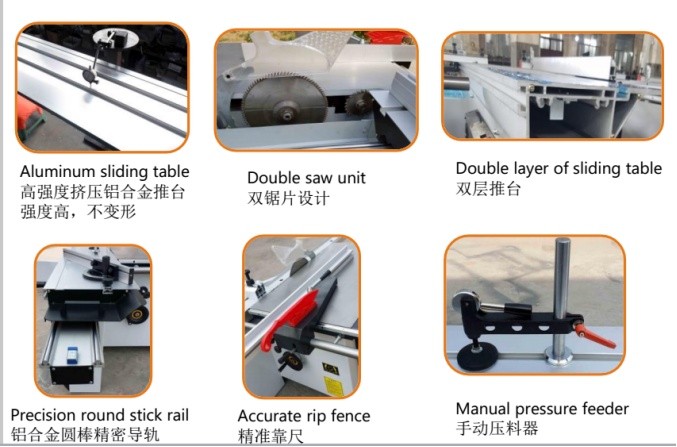

Double layer of sliding table.

Made of high-strength extruded aluminum alloy,

movable table is high in strength and won't bend.

Precision round stick rail.


Mode

Parameter

Mode

Parameter

Dimensions sliding table

(1600-4200)×325/375mm

MAX. Cutting length

1600-4200mm

MAX. Cutting width

1250mm

Max. Cutting Thickness

80mm

Max. Cutting Thickness at 45

60mm

Saw blade  Diameter

300 mm / 30mm

Scoring saw blade diameter

120 mm /20mm

Main saw spindle speed

4000-6000 rpm

Scoring saw spindle speed

7000-8000 rpm

Main saw shaft diameter

30mm

Motor power

4.0+0.75KW

Tilling saw blade

90°/0-45°

Weight

550-800kg

Overall dimensions

(1600-4200)x1100x1200mm

Application:


Apply to processing all kinds of density boards,shaving boards,wood-based panels,PVC panels,organic

glass plates and soild wood and others with wood structure and similar hardness.
