paper, ivory, rubber, foam, EPM, PE, PUR, neoprene, carbon fibers, jeans, textile, PVB, PVC, beryllium oxide, PTFE /Teflon, phenolic or epoxy resins.

Parameters: Power, Thickness And Speed

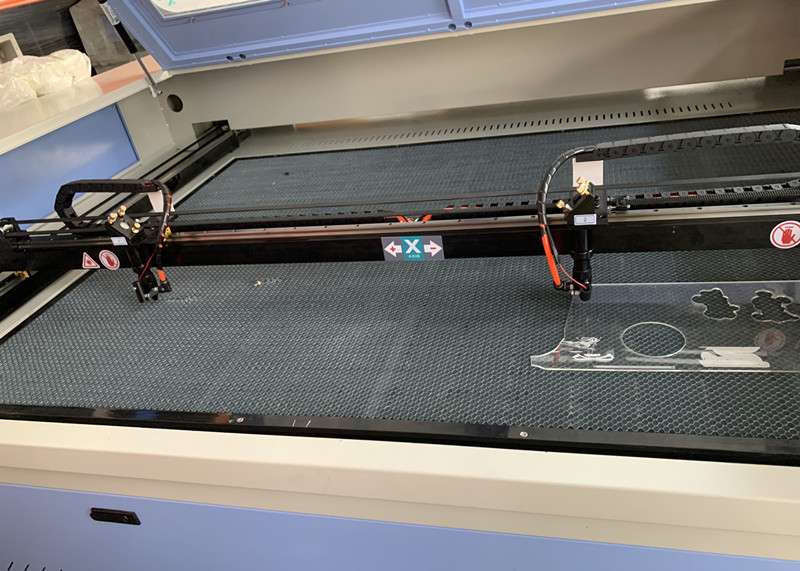

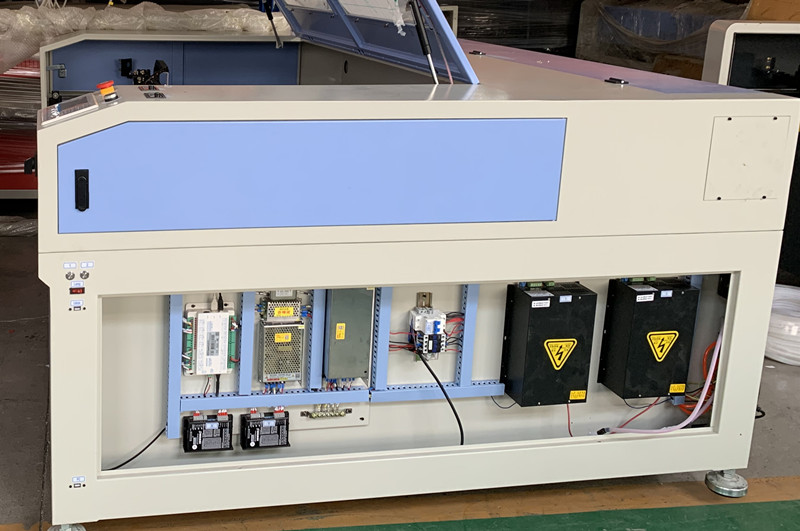

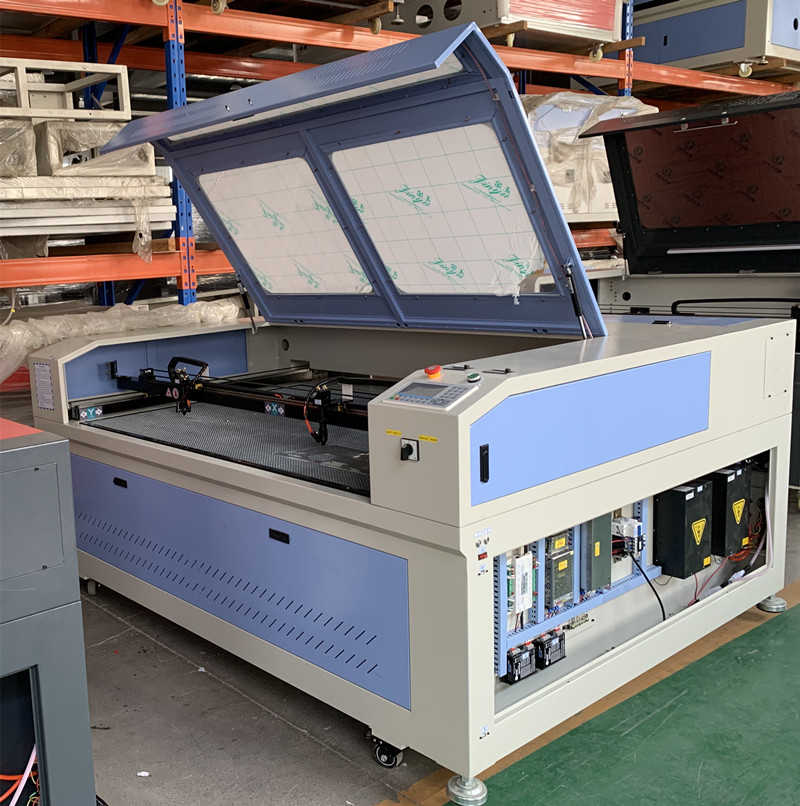

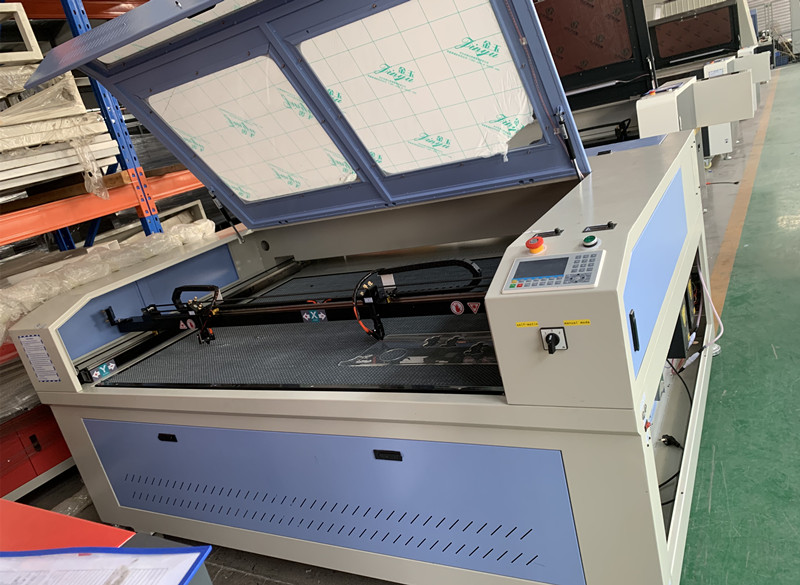

A CO2 Laser Cutting Machine is a thermal cutting tool that can cut a variety of non-metallic materials, including wood, acrylic, paper, leather, fabric, rubber

and foam. CO2 laser cutting machine are ideal for cutting materials with high absorption rates at the laser wavelength, offering fast cutting speeds and high precision.

CO2 Laser Cutting Machine can cut through materials of varying thicknesses at various speeds, depending on laser power, as well as material type and hardness.

Higher power lasers are capable of cutting thicker materials at faster speeds. In most cases, CO2 Laser Cutting Machine work with a power range of 40 watts to 400 watts

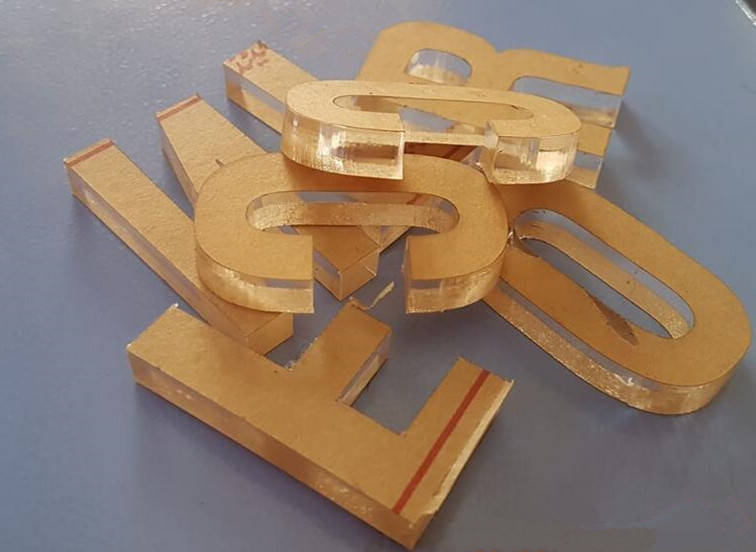

to cut through wood with a thickness of 1 mm to 20 mm at a speed of 1000 mm/min to 9000 mm/min, acrylic with a maximum thickness of 40 mm at a speed of around

1200 mm/min, leather and cloth with a thickness of 0.75 mm to 10 mm at a speed of 500 mm/min to 12000 mm/min, and paper with a thickness of 0.5 mm to 11 mm at

a speed of about 3000 mm/min.

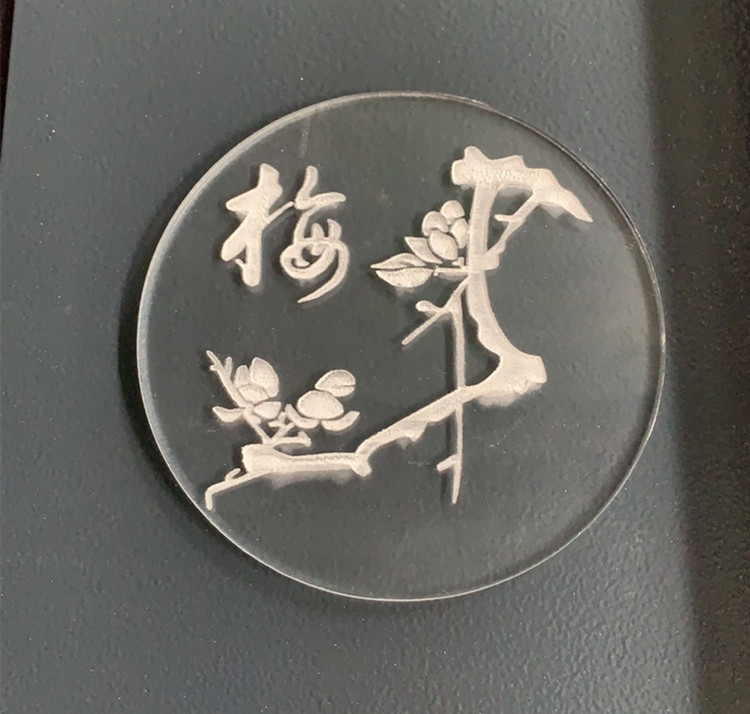

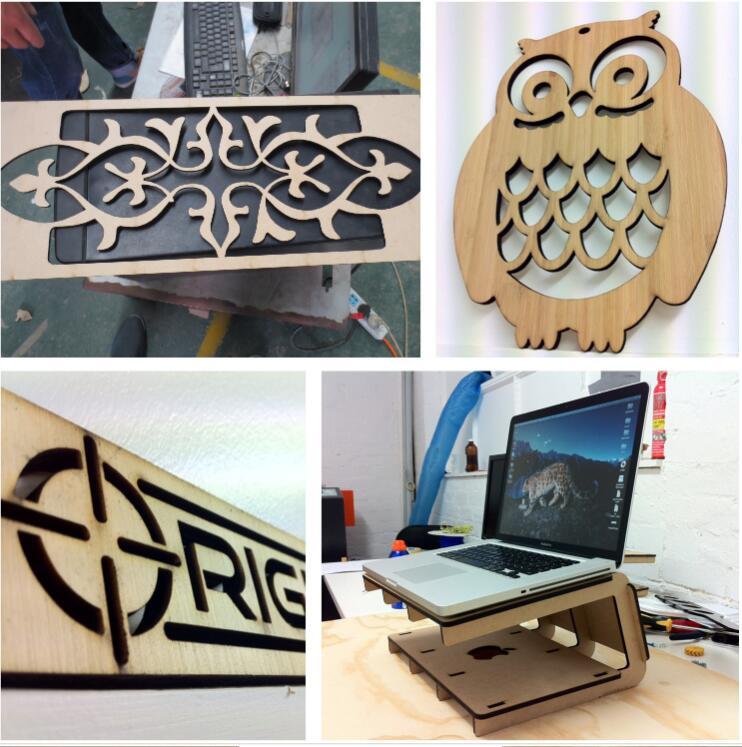

CO2 Laser Cutting Machine Cuttable Materials:

Cork

ABS (acrylonitrile butadiene styrene)

Cardboard

Leather (genuine leather and artificial leather)

XPS

CO2 Laser Power Cutting Thickness Table:

All charts are for reference only. The actual cutting thickness will vary depending on different material properties

and cutting parameters such as power and speed. Thanks for your reading!
