Main Features of metal cnc laser cutting machine:

1). Mixed-cut: metal steel such as stainless steel,carbon steel,and nonmetal such as acrylic,wood,etc.

2). High precision: X/Y axis adopt Leadshine servo motor with high precision belt transmission,improve the response speed and cutting precision,extend service life.
3). Good stability: optimized the nc system control,it can meet the precision parts processing,stable dynamic performance,also can work for long hours.

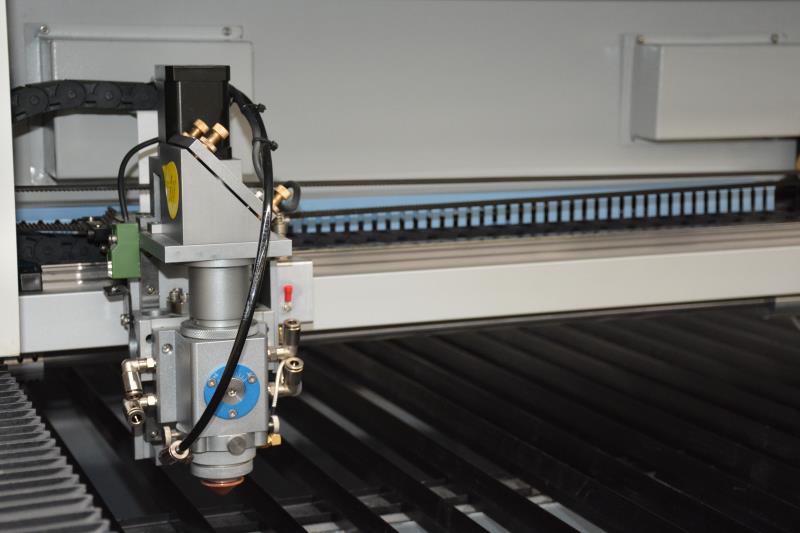

4). The cutting section with good quality: mechanical follow-up cutting head system,cutting head always follows the material to keep the cutting point location unchanged,

    which insures smooth cutting section without processing again.It can adopt to flat or curved surface sheet cutting.
5). Adopt sealed co2 laser tube,main consumable items are electric energy,water cooling,auxiliary gas and laser light.
6). Simple structure,easy operation,stable laser device and low maintenance cost.

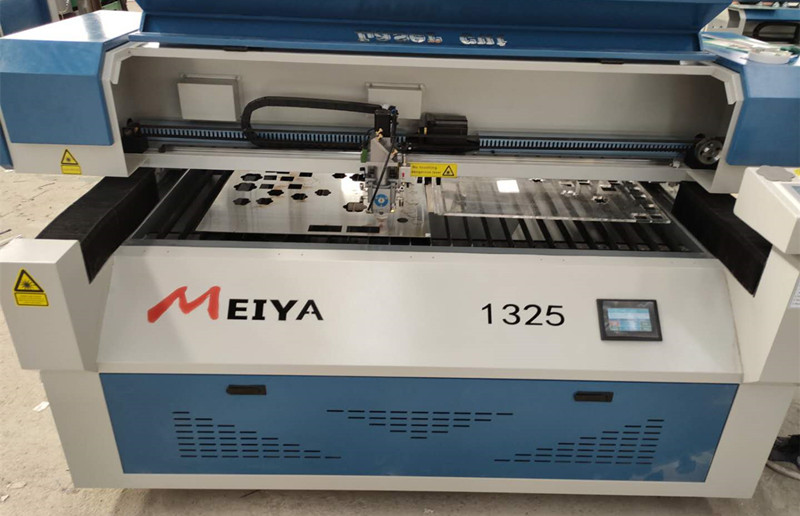

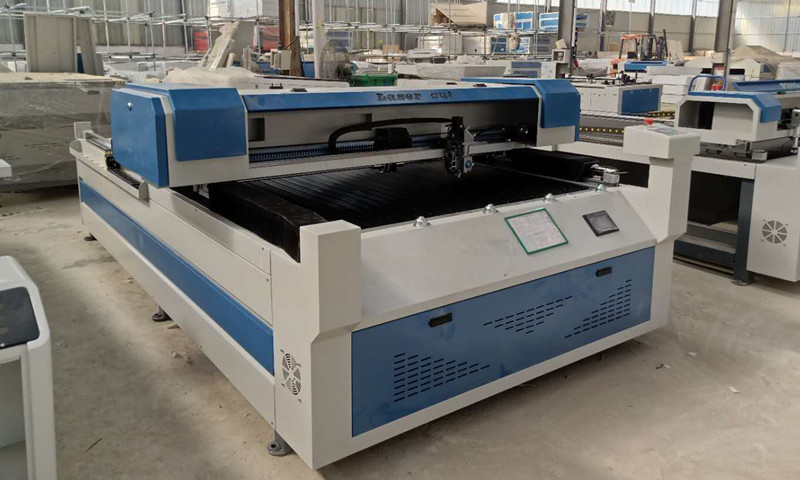

300W Laser cutting Machine parameter

1 Effective working size   2500*1300mm

2 Laser power Yong li laser tube   300W

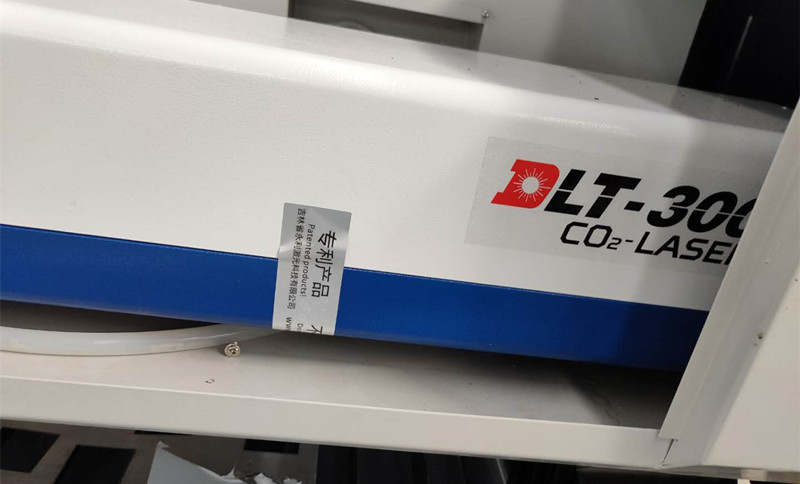

3 Laser type CO2 laser tube

4 Cutting speed 0-200mm/s

5 Working accuracy 0.005mm

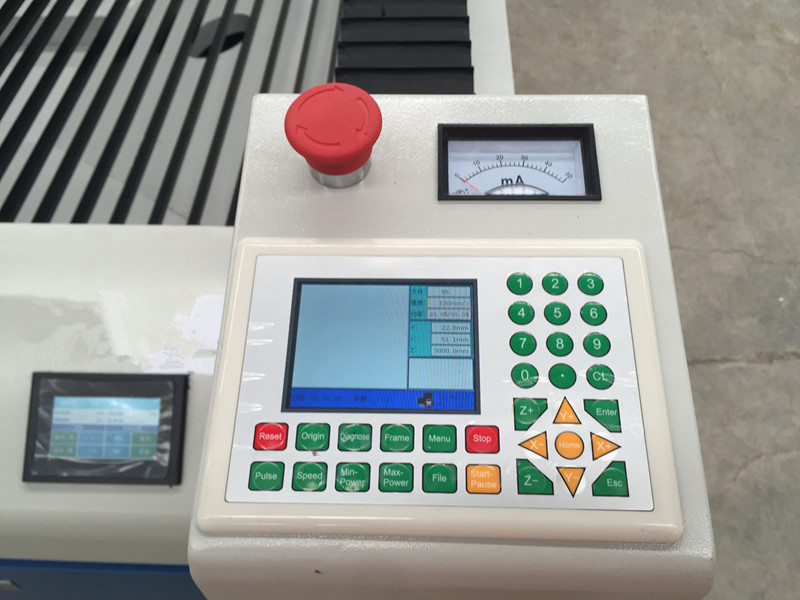

6 Control system Ruida control system--model 6332

7 Guide rail Taiwan HIWIN square rail

8 Motor Step motor and drivers

9 Cutting thickness 0-2 mm

10 Table structure Mesa of the blade

11 Dust collector 550W x air exhaust fan with tube ducts

12 Transmission way Shanghai Fulong Belt drive

14 Graphic format supported PLT,DXF,BMP,AI,DSP

15 Software supported CorelDraw,Photoshop,AutoCAD

16 Driving system Step motor

17 Cooling system Water pump/Water chiller

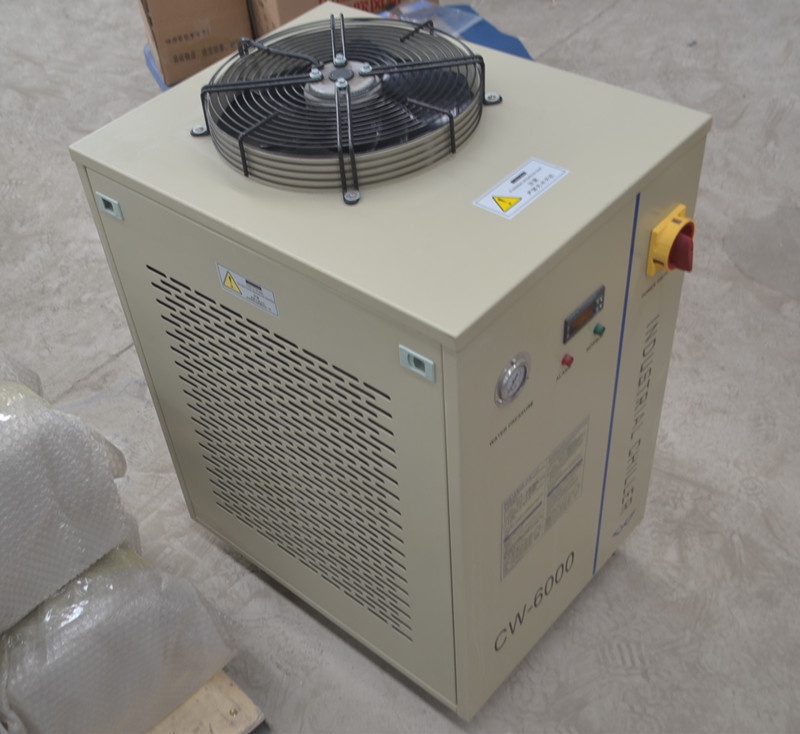

18 Water chiller CW5000/CW5200

19 Laser tube lifetime RECI laser tube:10000h

20 Power supply 220V 50HZ or 110V 60HZ

21 Operation temperature 0-45C

22 Operation humidity 5-95%

23 Recommended spare part Laser tube and lens

24 Main configuration 1X Laser tube

1set X Mirror and lens

1XWater chiller 1XEXHAUST FAN1x exhaust fan smoke pipe, 1X water pipe

1x USB cable 1xcommunication cable 1x CD(Ruida software English version)
