1

Effective working size

2500*1300mm

2

Laser power

Yongli laser tube 280W

3

Laser type

CO2 laser tube

4

Cutting speed

0-200mm/s

5

Working accuracy

0.005mm

6

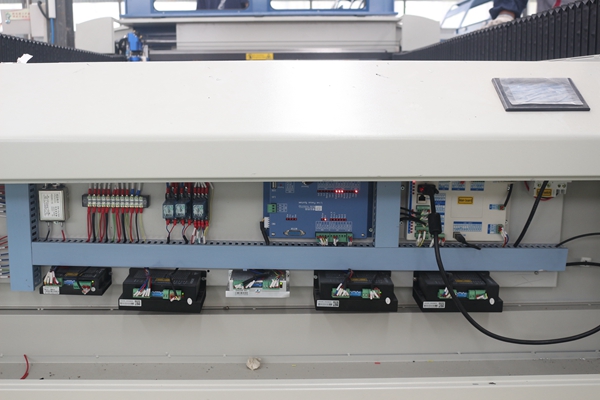

Control system

Ruida control system--model 6332

7

Guide rail

Taiwan HIWIN square rail

8

Motor

Step motor and drivers

9

Cutting thickness

0-2 mm

10

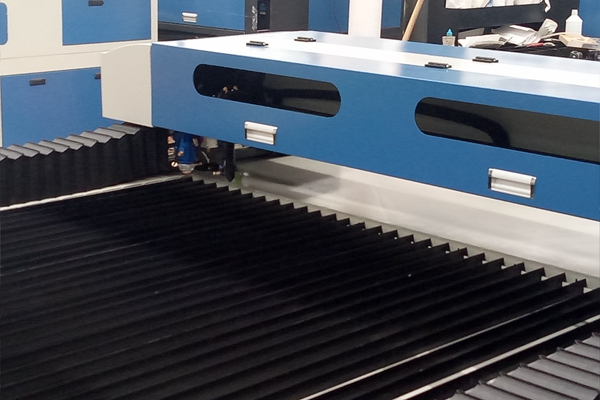

Table structure

Mesa of the blade

11

Dust collector

550W x air exhaust fan with tube ducts

12

Transmission way

Shanghai Fulong Belt drive

14

Graphic format supported

PLT,DXF,BMP,AI,DSP

15

Software supported

CorelDraw,Photoshop,AutoCAD

16

Driving system

Step motor

17

Cooling system

Water pump/Water chiller

18

Water chiller

CW5000/CW5200

19

Laser tube lifetime

RECI laser tube:10000h

20

Power supply

220V 50HZ or 110V 60HZ

21

Operation temperature

0-45C

22

Operation humidity

5-95%

23

Recommended spare part

Laser tube and lens

24

Main configuration

1X Laser tube

1set X Mirror and lens

1XWater chiller 1XEXHAUST FAN1x exhaust fansmoke pipe, 1X water pipe

1x USB cable 1xcommunication cable 1x CD(Ruida software english version)
