Promotional fiber laser marking machine for metal and nonmetal material

Tel:+86 13176656080
Email:info@meiyacnc.com
WhatsApp:+86 13176656080
Product Details
  • RAKPnBY7QEe7qZ3thRdQTQ
  • CnpFdbTMTBq7ZEaegm1HNQ

Characture:

1). Long lifetime, over 100000 hours.
2). Compact laser source with air cooling.
3). 2 to 5 times more productive a traditional laser marker or laser engraver.
4). Super quality galvanometer scanning system.
5). High accuracy and repeatability for correct marks each time with galvanometer scanners and electronic controls.
6). More stable performance.
7). Professional control board and marking software. The software controlling system has the interface of windows and comprises files output by software such as Coreldraw, AutoCAD, Photoshop etc. It can support various file formats such as PLT,DXF,PCX,BMP etc.
8). Output power is stable, optical mode is good, beam quality is excellent.
9). Marking speed is fast, efficient, and high accuracy.
10). Appearance is professional, operation is easy.


Technical Data:

Laser Wavelength: 1064nm

Marking Area: 110mm*110mm

Optional Marking Area: 200mm*200mm / 300mm*300mm

Marking Depth: ≤1.0mm

Marking Speed: 800 standard characters/second

Minimum Line Width: 0.012mm

Minimum Character: 0.15mm

Repeated Precision: ±0.003mm

Life-span of Fiber Laser Module: 100000hours

Beam Quality: M2 <1.5

Focus Spot Diameter: <0.01mm

Output Power of Laser: 10%~100% continuously to be adjusted

System Operation Environment: Windows XP / W7--32/64bits / W8--32/64bits

Cooling Mode: Air cooling--Built-in

Temperature of Operation Environment: 15℃~35℃

Power Input 220V / 50HZ / single phase or 110V / 60HZ / single phase

Power Requirement: <400W

Communication Interface: USB

Certificate: CE



Package

GJnMqeB-RnKl1VxDM7UChQ


  • MeiUnpqNR5SbWscv1KTNsA

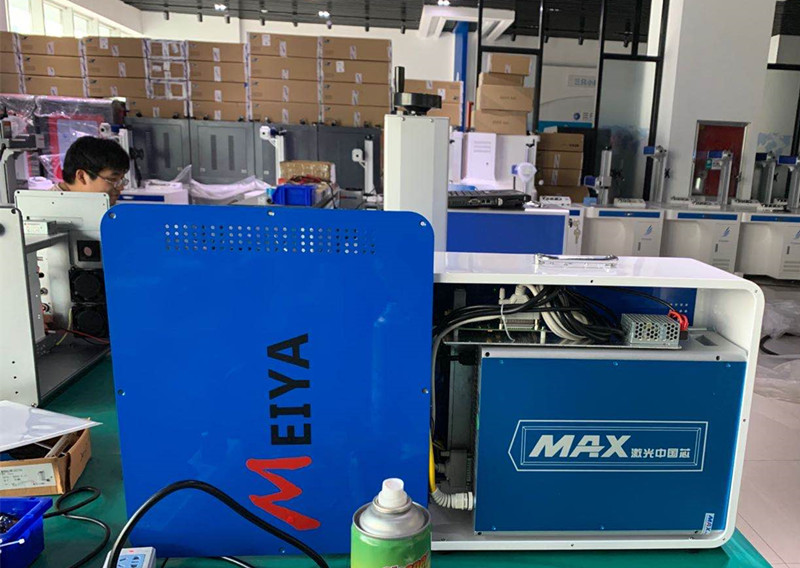

    Max fiber laser is suitable for intergration, and could meet the requirements of plastic marking, metal marking, engraving, coating removal,fine cutting, drilling, etc.
  • nOVgxjliQ62iOJdK8sPtFw

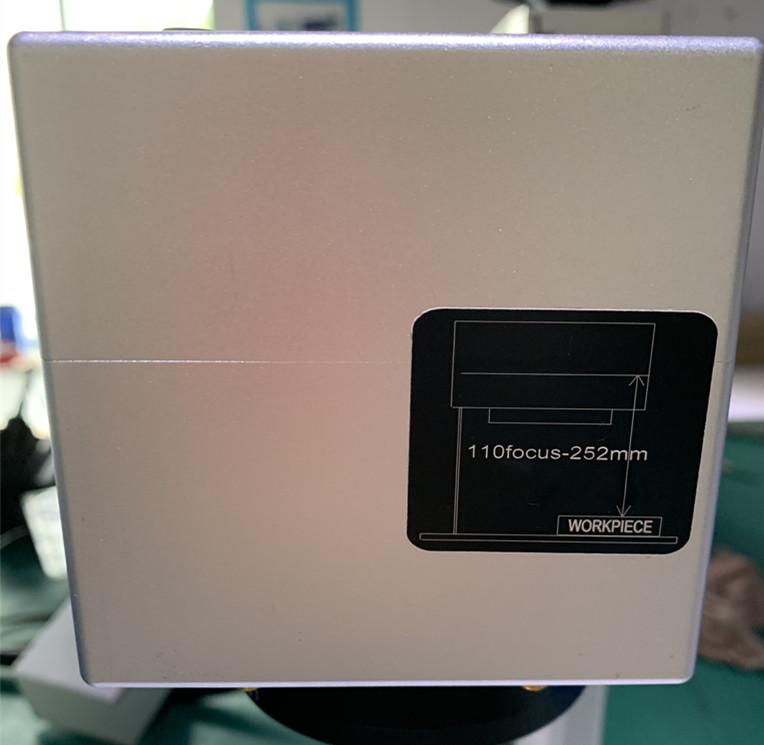

    Nest digital type scan head,China top quality brand; high accuracy; high efficiency;
  • ImfI-RL6SpyCD63DMKVdvw

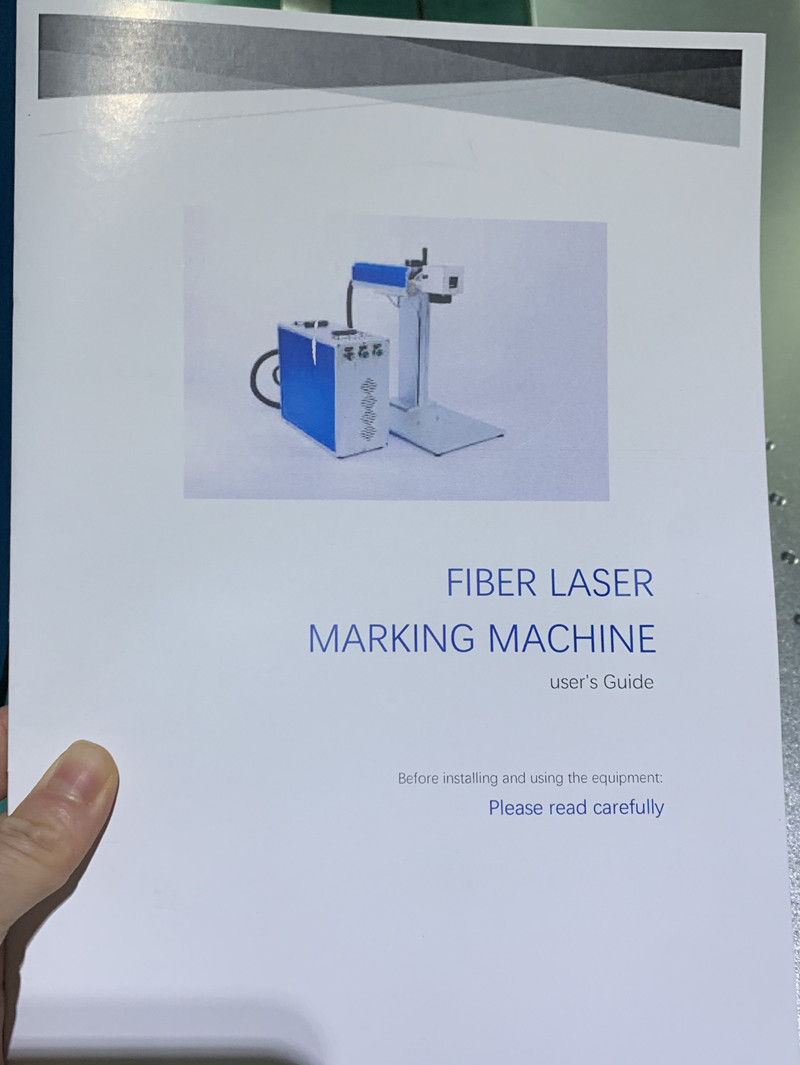

    Detailed operation manual is more easy to operate, so don't worry about how to use this machine.

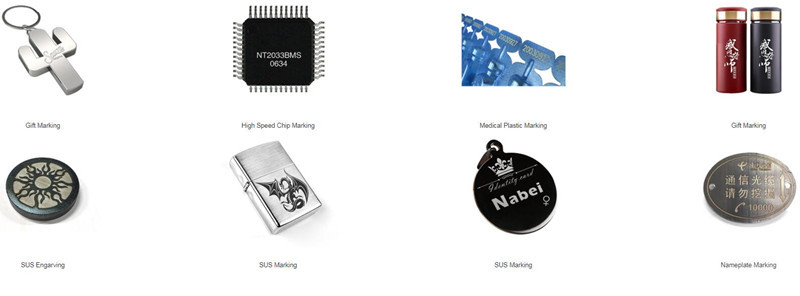

Application:

1).Materials: Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card )
Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits,

mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories,

auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)


2).Industry: Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance,

Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s,

Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.

KAYpwdFURJa5_sltYHc7iQ
