Portable Handheld 20/30W Fiber Laser Marking Machine Wisely Used For heavy product not easy moving / Metal / Part of non-metal

Tel:+86 13176656080
Email:info@meiyacnc.com
WhatsApp:+86 13176656080
Product Details
  • 775G273LQ-aS-ZZ195t8Jw
  • Maj6LwsZTZCHA5IEFPO-6Q

Mini handheld fiber laser marking machine features:

1. Wide range: The mini handheld fiber laser engraving machine can be used on many metal and nonmetal materials.

2. Permanent marking: Laser marking is a permanent marking. It won’t fade.

3. Long service time: Fiber laser model has a over 100,000 hours working life. Almost no maintenance during this period.

4. Easy to operate: Support almost any Windows-based software like Coreldraw, AutoCAD, Photoshop.

5. High precision: 0.0025mm re-position accuracy. Minimum line width 0.01mm.

6. Non-contact process: Won't cause mechanical extrusion or mechanical stress to materials.

7. Portable: Small footprint, easy to move and transportation. Size like a computer case.8. 20w/30w/50w fiber laser source for choose


Technical data

Product nameLaser Manufacturer MAX,Raycus,IPG,JPT Fiber Laser Source
20 watt Diode Hand held Laser Marking Printer Machine
Laser power. 20W 50W etc(optional)
Frequency:20KHz-80KHz
Marking area110*110mm(70-300mm optional)
Marking color.black,white,colour(according to material)
Output power of laser10%~100%continuously to be adjusted
Cooling modeair cooling
Communication interface:USB
The minimum focus diameter:20μm
Minimal character:0.15mm*0.15mm
Marking depth:0-2mm(according to material)
Repeated accuracy:0.002mm
Working condition:humidity 5%-75%,free of condensed water
Marking format:graphics,text,bar codes,two-dimensional code etc.
Scanning head:high speed optical scanning galvanometer
Focus assistancedouble red pointer combined in head
Warranty:24 months
Optional:   rotary device,moving table,other customized automation

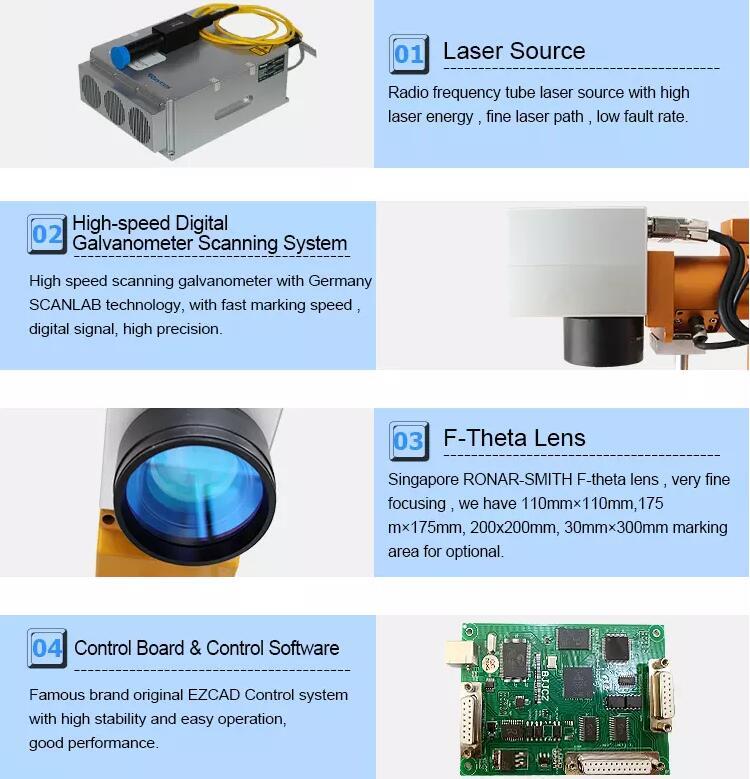

Main parts of handheld fiber laser marking machine

6m8uFcUZQ7Gu46GPGYq9hQ


Applicable Industries:

Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.


Applicable Materials:
Metals (including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.


oDk6-S68SuybLBipNtE41A

5u90NipxSNCyt58Ayl7Ypg
