Product Details
Advantages :
1) Small size and compact structure, convenient to move.
2) Long lifespan of fiber laser source: 100 000 hours
3) good scanning galvanometer, with good seal, small volume, compact.
4) good Scaps controller, USB interface, swift and stable transmission, can work with a Laptop.
5) High Precision: upto 0.0012mm, bring you the fantastic and satisfied marking effect.
6) Superior Laser Beam: the definition is 1 micron, 10 times as that of traditional products.
7) No Consumables: One Fiber marker can work for more than 10 years without any consumables.
8) Fast Speed: 800 standard characters per second, is 3 to 5 times above that of traditional products.
9) The fiber laser beam no need to adjust the laser optical path.
10) Low consumption: <400W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmental.
11) Strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, etc..
12) Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effect in YAG laser, no maintenance.
13) Deeper Marking: Max. 1.2mm stainless steel, suitable for the industries which needs high precition and depth marking effect.


Technical Parameters

Type

MY-10

MY-20

Power

10W

20W

Laser Wavelength

1064nm

Marking Area

110mm*110mm

Optional Marking Area

200mm*200mm / 300mm*300mm

Marking Depth

≤1.0mm

Marking Speed

800 standard characters/second

Minimum Line Width

0.012mm

Minimum Character

0.15mm

Repeated Precision

±0.003mm

Life-span of Fiber Laser Module

100 000hours

Beam Quality

M2 <1.5

Focus Spot Diameter

<0.01mm

Output Power of Laser

10%~100% continuously to be adjusted

System Operation Environment

Windows XP / W7--32/64bits / W8--32/64bits

Cooling Mode

Air cooling--Built-in

Temperature of Operation Environment

15℃~35℃

Power Input

220V / 50HZ / single phase or 110V / 60HZ / single phase

Power Requirement

<400W

Communication Interface

USB

Machine Dimension/after package

650mm*210mm*550mm/880*420*700mm

Net Weight/gross weight

30KG/53kgs

Optional (Not free of charge)

Rotary Device, Moving Table, other customized Automation

r5JR8e7qQceGqjWEQFssxw

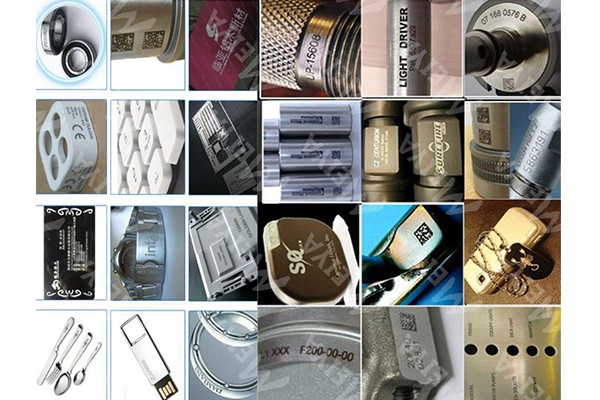

Application Materials :
laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel,

 Brass,Aluminium, Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC.

Ozylj2RjQTm585NbceQZ0Q
