20W 30W 50W 100w deep engraving marking metal steel enclosed 3d fiber laser marking machine price

Deep 3D laser engraving machine with fiber laser source is especially used for deep engraving to realize the 3D surface, and the 3D laser engraver has enclosed structure for safe protection. Now the affordable 3D laser engraving machine for sale with best price.
Tel:+86 13176656080
Email:info@meiyacnc.com
WhatsApp:+86 13176656080
Product Details
  • hAAYRmL6SAaY8Jve_IGrsA (1)
  • DEzcEFwGQV6Hr60cO7rvtg (1)

Features of enclosed fiber laser marking machine

1.Enclosed machine structure, safe doors in internal design, to protect safety of works at maximum extent. Highly sealed cabinet but with with good cooling effect, can be used in every environment.

2. The machine has no consumption parts. laser generator lifetime span 100000 hours, can work more than 10 years without problem.

3. Long lifespan fiber laser source: 100 000hours.

4. Good scan head, with good seal, small volume, and compact.

5. High Precision: Up to 0.01mm, bring you the fantastic and satisfied marking effect.

6. Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effect.


ModelMY-20WMY-30WMY-50W
Output power20W30W50W
Repetitive Rate30K-200KHZ50K-200KHZ50K-200KHZ
Wavelength1064nm
Guide laserRed light/655nm wavelength/output1.0mw
Marking range110mm*110mm
Optional marking
range
70mm*70mm/150mm*150mm/170mm*170mm/200mm*200mm/300mm*300mm
Marking modelXYZ axis dynamic focusing
Min line width0.03mm
Marking speed≤10000mm/s
Operate systemWIN7WINXP
Support fontTrue type,AUTOCAD,Others
1D barcodeCODE39/CODE128/TIF/CODABAR/EAN/UPC
2D barcodeQR/PDF417/DATA Matrix(ECC220)
Support formatPLT/DXF/DWG/SVG/STL/BMP/JPG/PNG/TIF
Working
environment
Temperature:10℃-35℃ Humidity 5%/75%
Power
consumption
Single phase 110v/220v optiona/50-60HZ
Cooling wayAir cooling
Whole machine
size
580mm*750mm*1532mm

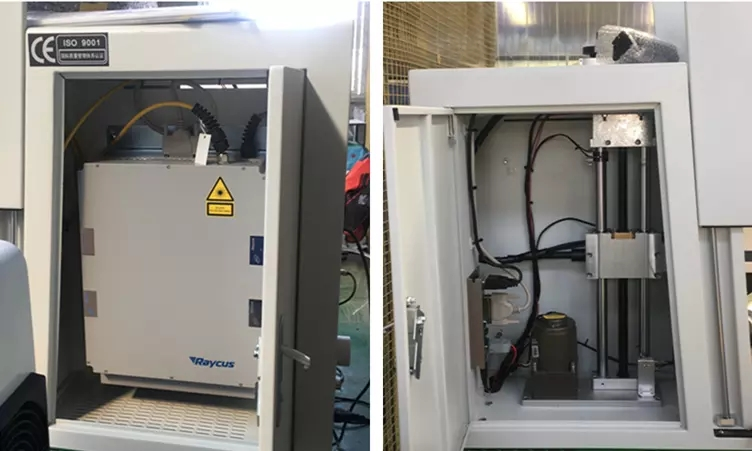

  • Motorized Z axis, which is more easier to set right focus</br>Raycus laser with pulse duration adjustable with best laser beam quality
    Motorized Z axis, which is more easier to set right focus
    Raycus laser with pulse duration adjustable with best laser beam quality

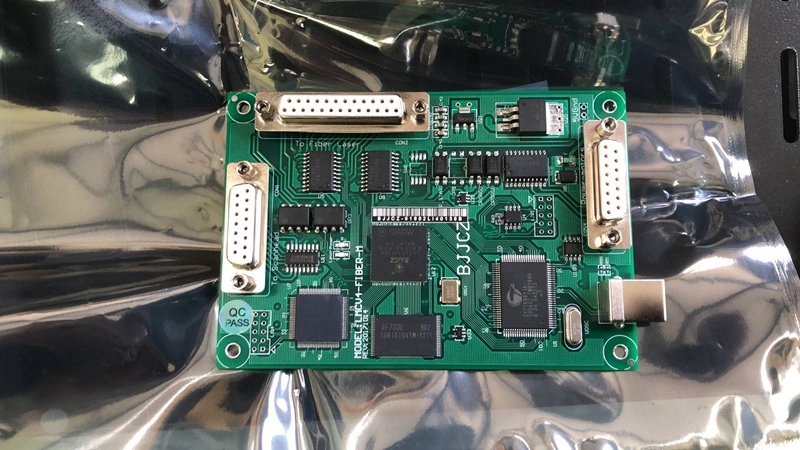

  • BJJCZ control board with EZCAD software
    BJJCZ control board with EZCAD software

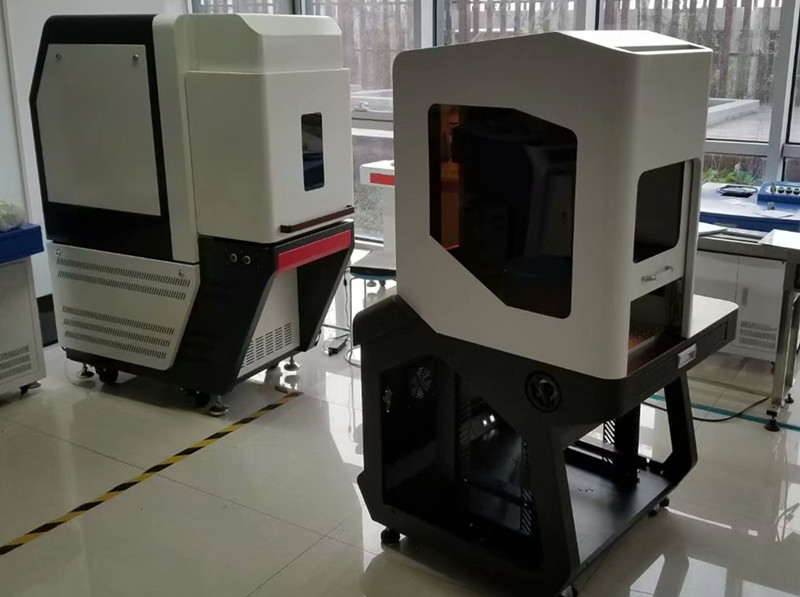

  • high table enclosed fiber laser marking machine
    high table enclosed fiber laser marking machine

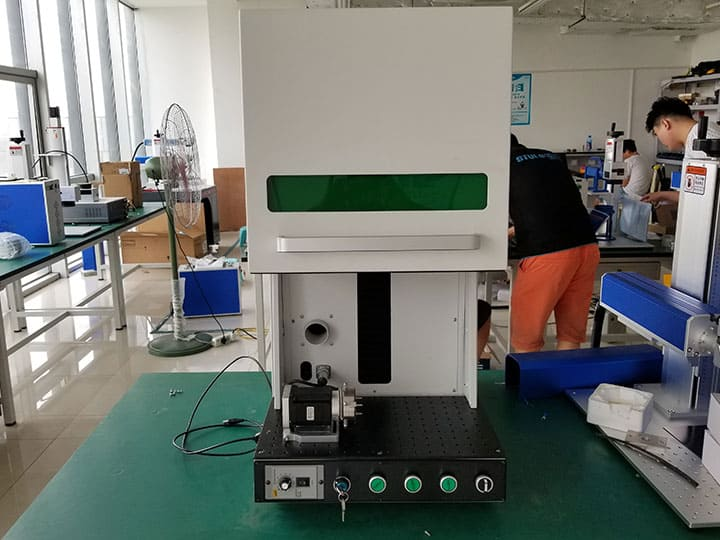

  • Deep engraving machine with rotary
    Deep engraving machine with rotary

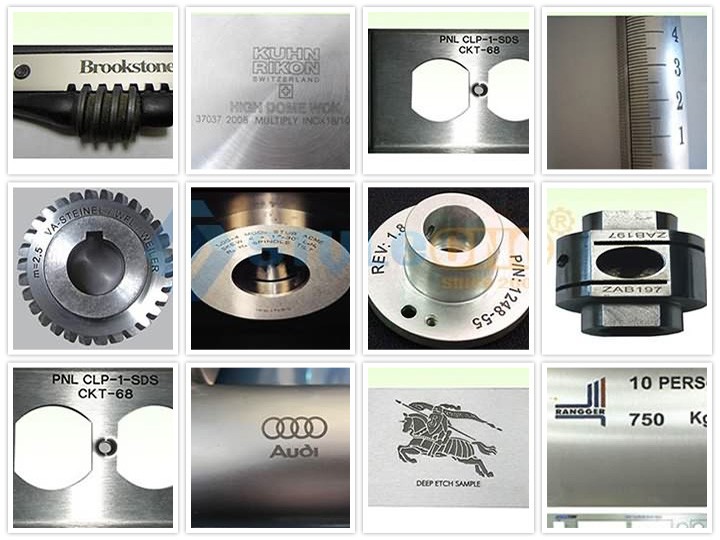

Application for deep laser engraving machine

Applicable Materials: Metals (including rare metals), engineering plastics, electroplating materials, coating materials, coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.

Applicable Industries: Electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries

CNBhQaEpT_KiH9vZeWvasQ (1)
