CO2 Laser Features

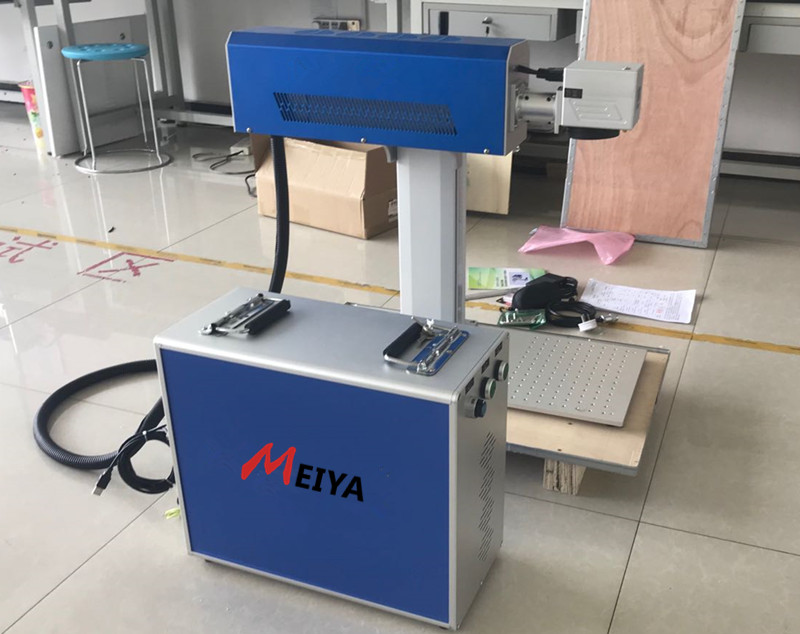

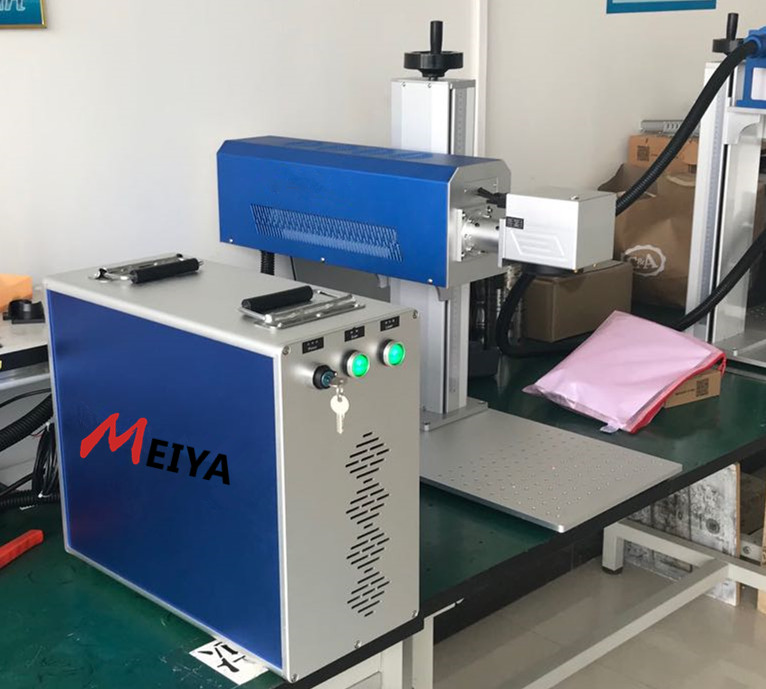

Our CO2 Laser Marking Machine equipped the yongli RF CO2 Laser, High-Speed Resonance Mirror System.

The speed is quicker and the performance is stable.This series Laser Equipments have widely won user’s trust depend on it’s superior performance and reliable quality.

Feature:

a. High marking precision, high speed, controllable carving depth

b. Big laser power, suitable carving and cutting nonmetal products

c. No consumables, low cost, sa long as 20,000 to 30,000 hours service life

d. Clear mark, high carving and cutting efficiency, environmental friendly, and energy, saving

e. General machine, adopted back focalization, laser power is controlled by the software and serially adjustable.It is applicable to fine marking on nonmetal materials with low requirements.

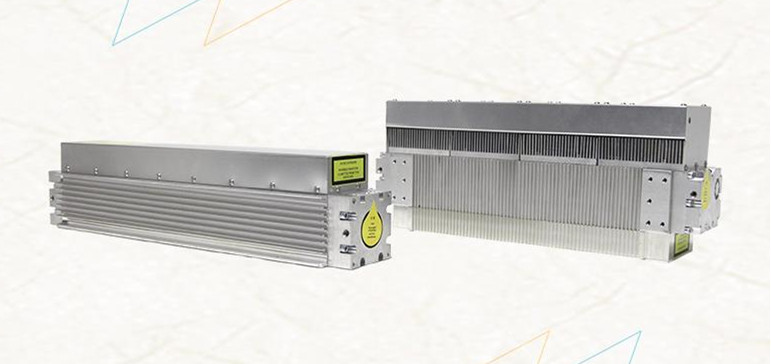

f. Adopting CO2 RF laser tube which has excellent performance and long life.

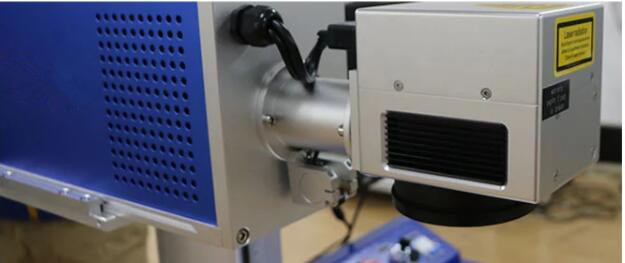

g. Adopting high-speed galvanometer system with high speed, high precision and stable performance.

h. Adopting imported optics lens, low loss, excellent focalization performance.

i. The marking software is mightiness ,under WINDOWS interface, compatible with CORELDRAW, AUTOCAD, PHOTOSHOP etc. a variety of software output files. Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF font. Support automated coding, serial number, batch number, date, bar code and two-dimensional code marking.

Technical data:

1.Laser power: 30W

2.Working area: 110*110mm

3.Cooling system: air cooling

4.Operation system: Microsoft Windows XP or Windows 2000

5.Control software: EZCAD marking control software or laser2.1 marking control software

6.Graphic format supported BMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST, PLT,etc.

7.Laser Wavelength: 1064 nm

8.Response time: 0.5ms

9.Frequency of pulse: ≦30KHZ

10.Max marking depth: ≤ 3mm (adjustable according to materials)

11.Marking speed: 0-7000mm/s

12.Marking lines: 1-10 lines(in the marking area)

13.Minimum line width: 0.1 mm

14.Minimum character: 0.4 mm

15.Repeatability accuracy: ±0.01mm

16.Unit power: ≤5KW

17.Supply Voltage: 220V / 50Hz - 60Hz
