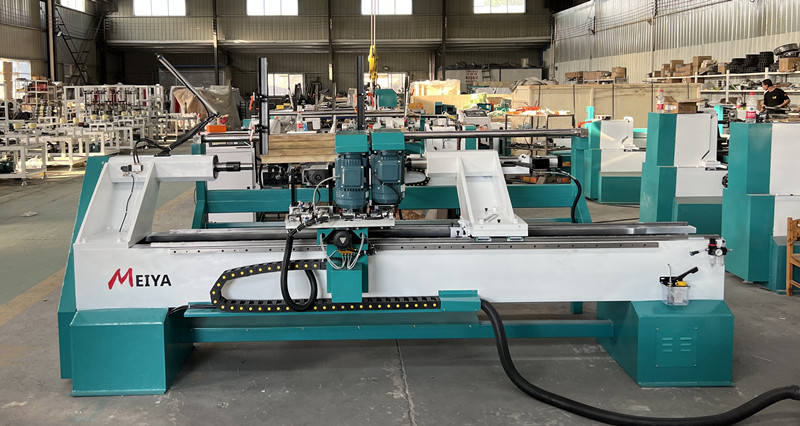

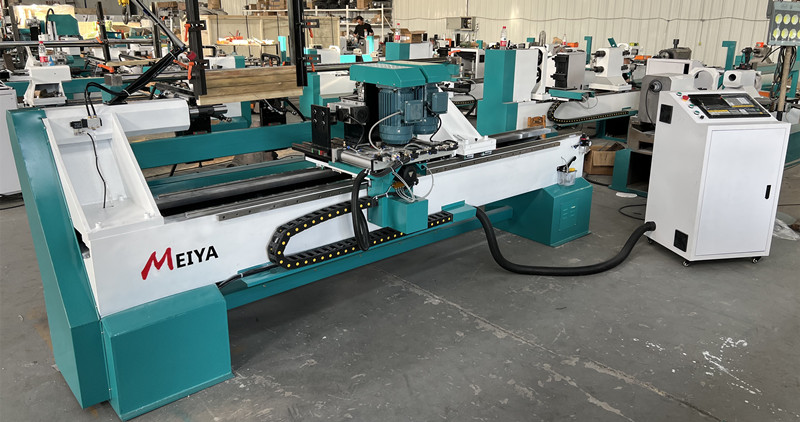

1.China Wood lathe machine with spindle and turning tools ,sanding wheel and milling cutter automatic loading.

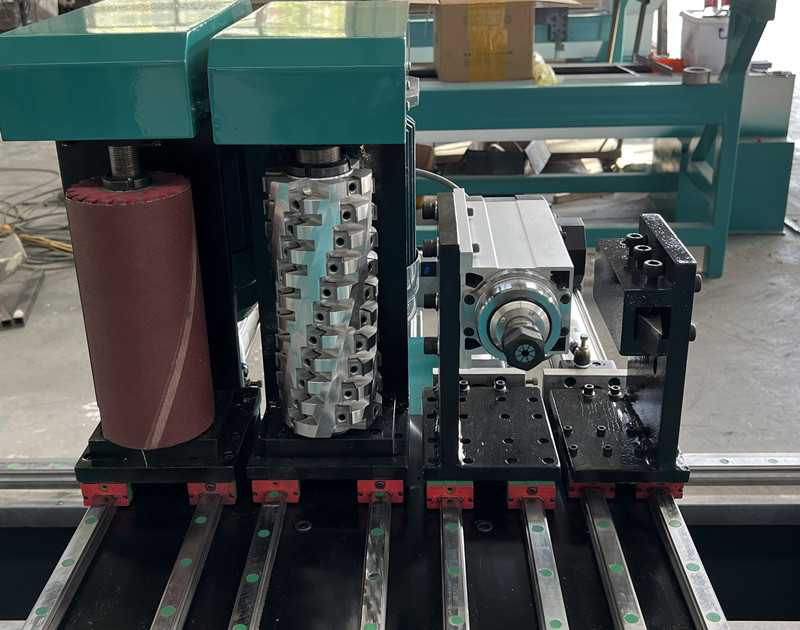

2.Multi-Functional CNC wood lathe machine is equipped with three independently controlled cutting tools, 1st turning blade for roughing the square wood to be shapes designed, 2nd milling tool for twisting or fluting, 3rd producing one-off bespoke turnings, at last A sanding head with narrow belt for sanding turned or straight profiles is optional

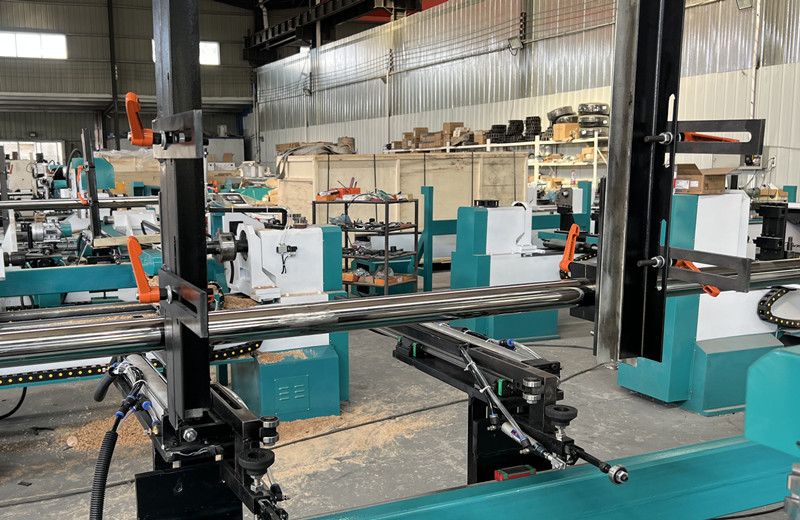

3.With full automatic feeding device, automatic loading raw timber, automatic centering, automtic turning according to the program, save time and labor to improve the working efficiency.

Technical data

Model : MY1530-4T

Working size :1500*300mm

Max. diameter 300mm Max. length 2500mm (1500mm and 2000mm for choose)

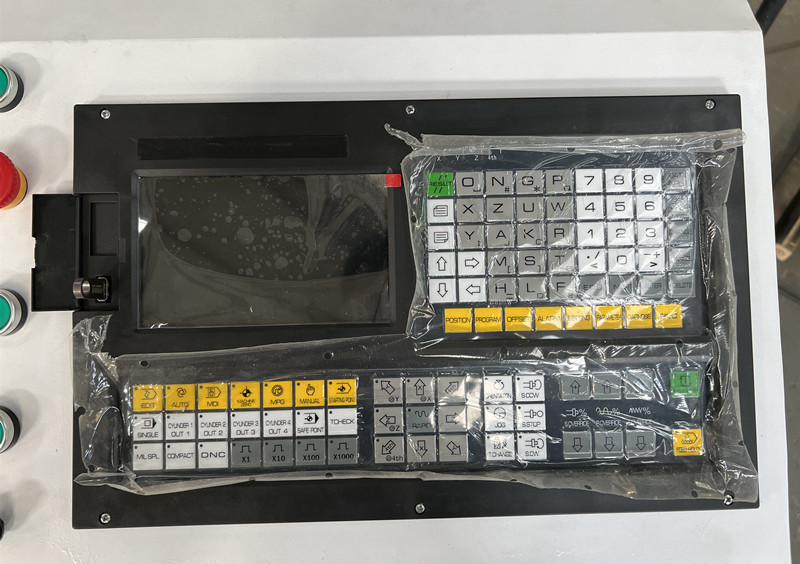

Control system controller :1000tc

Inverter Best Driving system: Leadshine 2206 servo driver and motor

Frame :Heavy duty wholly cast iron

Feeding system :Automatic feeding system

Transmission :Taiwan TBI ballscrew transmission

Taiwan Hiwin square rail 25

Turning motor :5.5KW Spindle

3.5kw HQD air-cooling

Milling tool Length:250mm, OD:125mm,ID:40mm

Functions: Sculpture, carving, slotting, milling

Spindle speed： 0-3000r/min

Working voltage： 380V/3P/50HZ or 220V/3P/60HZ
