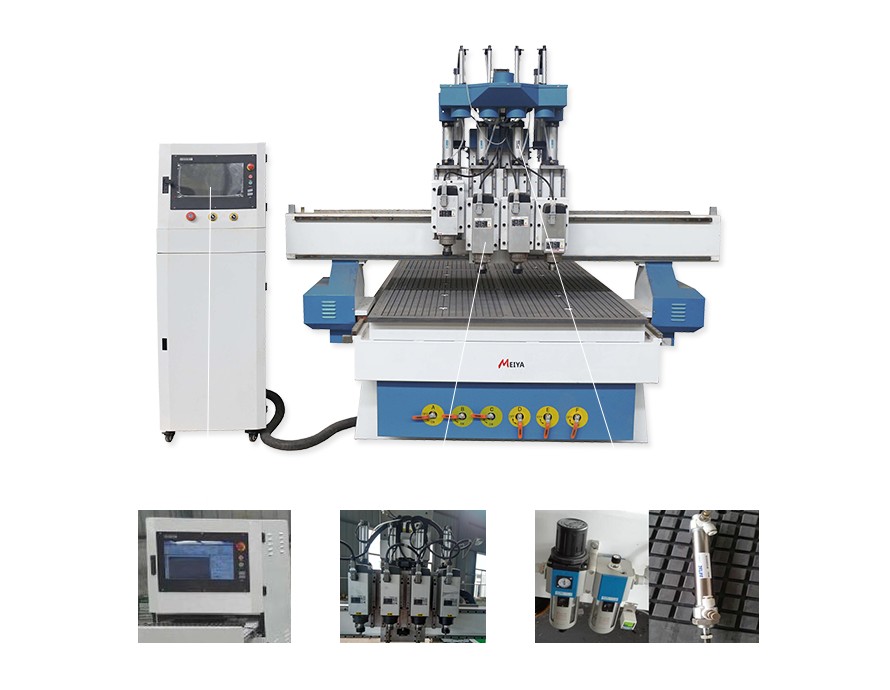

Wooden Door Making Cnc Router Cutting Machine With Four Spindles

Tel：+86 13176656080

Email：info@meiyacnc.com

WhatsApp：+86 13176656080

Product Details

1.Working area:1300*2500*300mm
2.Spindle:6KW air cooling spindle in the middle one + three 3.5KW air cooling spindle
3. Table: vacuum table
4.Transmission: X,Y axis rack transmission, Z-axis Taiwan TBI ball screw.
5.Sunfar inverter.
6.Hiwin square linear guide rails 25
7.Hybrid servo motor and driver 2206
8. 3pcs original air cylinder + 1 pc parallel air cylinder
9.Operating system: Shanlong control system
10.Z zero tool sensor
11. Tools box(include router bits, collector,clamp,tool sensor,ect)
12. Artcam software
13.7.5kw China water vacuum pump 380V
14.dual-drum dust collector, brush,suction pipe
15.Voltage 3Phase 380V/50HZ
16.oil autolubrication system
17.Packaging should be international standard plywood case packing
18.with positioning cylinder.

Description	Parameter
X,Y,Z working area	1300x2500x200mm
X,Y,Z Traveling positioning accuracy	±0.03/300mm
X,Y,Z Repositioning positioning accuracy	±0.03mm
Lathe bed frame	Steel square tubes
X,Y Structure	Rack and pinion, Taiwan HIWIN guide rails 25mm
Z Structure	Taiwan Ball screw 2510 Taiwan HIWIN guide rails 25mm
Drive motors	Hybrid servo motor system
Table surface	vacuum table
Fixing method	vacuum
Max power comsumption	(without spindle)2.0KW
Max rapid travel rate	30000mm/min
Max working speed	20000mm/min
Spindle	air-cooling
Spindle power	6KW
Spindle speed	6000-24000RPM
Working voltage	AC380V,50/60HZ,3Phase(Option； 220V)
Command language	G Code
Operatiing system	Shanlong control system
Computer interface	USB
Collet	ER32(3.175/4/6/8/10/12.7mm)
X,Y Resolution	<0.02mm
Software compatiliby	Type3/Artcam/Artcut/Ucancam/JDpaint etc software
Certificate	CE
