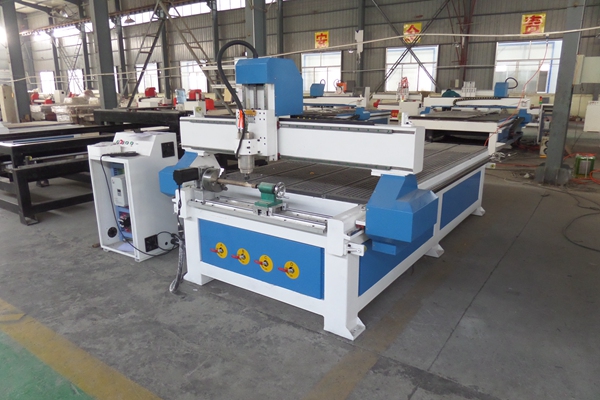

4 Axis CNC Router With Rotary 1325

Tel：+86 13176656080
Email：info@meiyacnc.com
WhatsApp：+86 13176656080
Product Details
  • mLmxCGusTiG8RkH38D_epw
  • EOrzyJJjQN-kQZ-LvonXoQ
# spindle : 3.0 kw water cooling spindle

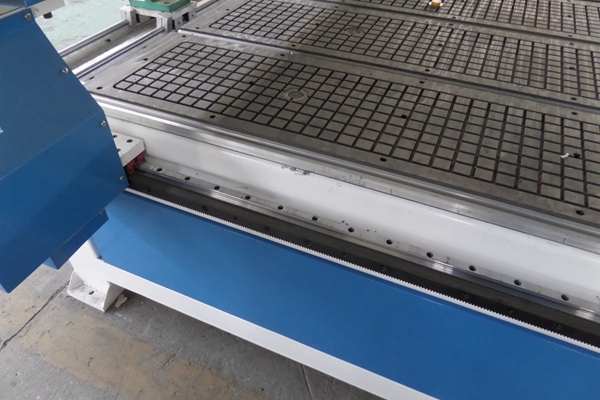

# table : T-Slot table
# transmission : X, Y Rack, Z-axis Taiwan TBI ball screw
# inverter : Fuling inverter
# square rail from Taiwan Hiwin
# stepper motor 450B and Leadshine M860 driver
# Operating System : Weihong NK105 DSP system
# Be compatible with various CAD/CAM software as TYPE3/Artcam/Casmate/Artcut etc
# tool sensor, tools box(material holder, collect, dust hood etc.)
# Auto lubrication system


Working area

1300*2500*200mm

Table

T-slot working table with PVC protection

Spindle power

3.0kw water cooling, 24000rpm(option:Italy HSD air cooling spindle)

Motor system

Stepper motor 450B system(option:Japn Yaskawa servo motor)

Control system

DSP NK105

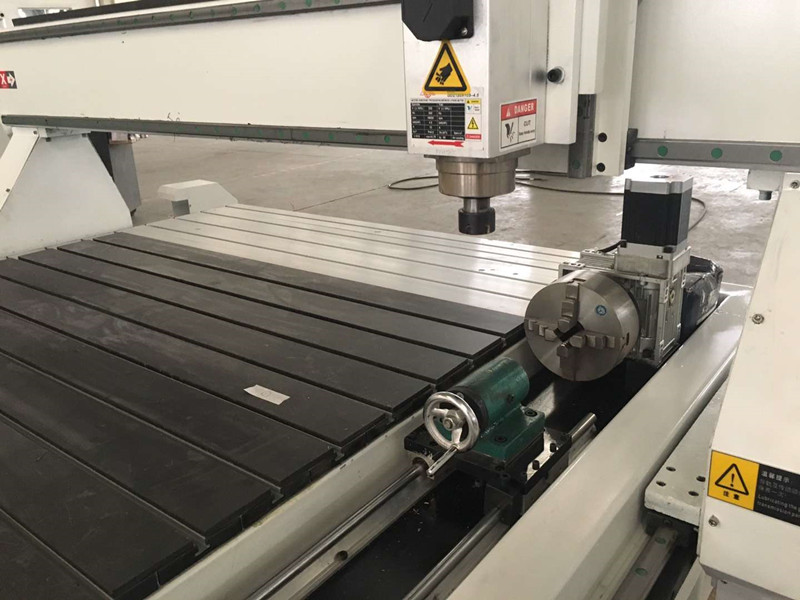

Rotary device

200mm Diameter,1500mm length

Transmission

TBI ball screw from Taiwan

Linear rail

linear guide

Inverter

3.7kw FuLing inverter(option:Delta inverter FromTaiwan)

Driver

Leadshine M860 drivers (top brand in China)

Structure

Square lathe tube bed

Speed

Max travelling speed:6000mm/min

Max working speed:2500mm/min

Switch

Japanese OMRON Switch

Cable

Highly flexible towline;fire-resistant Double-sheathed cable

Cooling

Water cooling spindle

Software

Artcam software

Package

Plywood case

Working voltage

380V,50/60HZ,3Phase(Option: 220V)

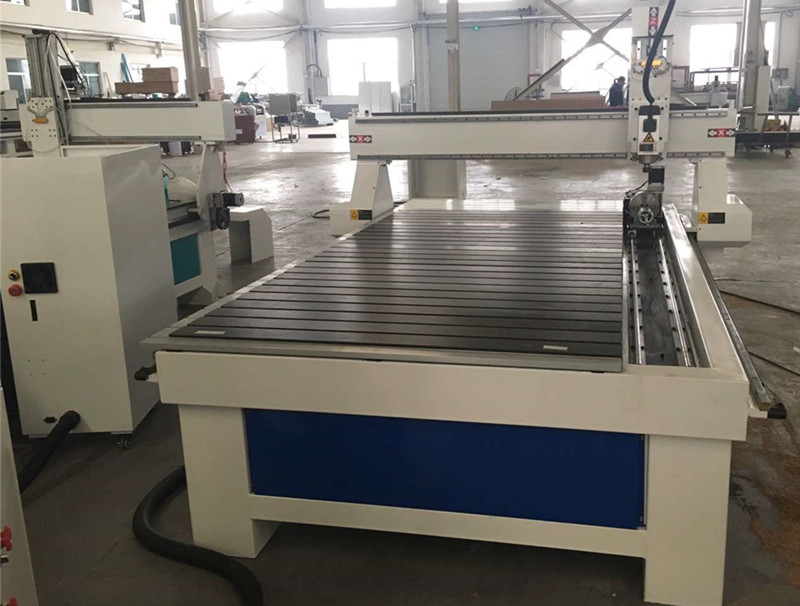

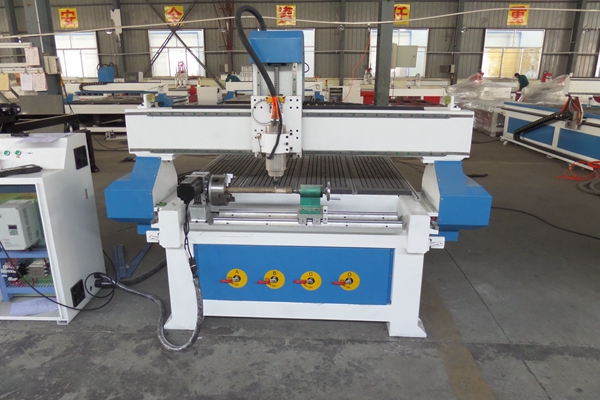

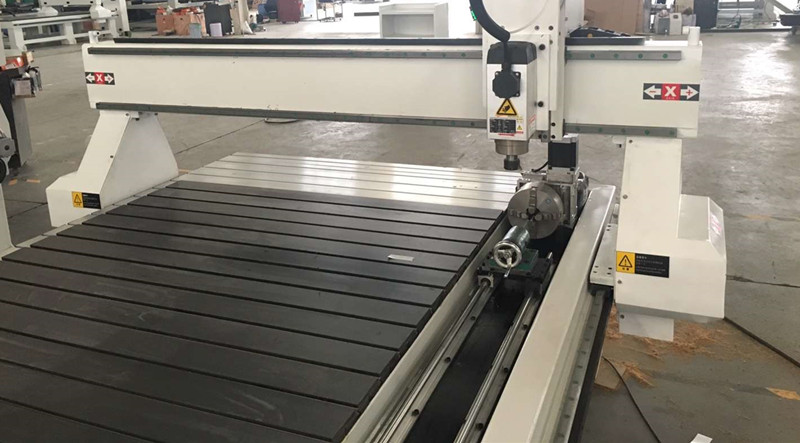

Another kinds of 4 Axis CNC Router With Rotary 1325

  • eU5n2Wh-Tpm9UEzuOpo_LQ
  • 8Wgx_0fAQZOaLd9Q2-EOvQ
  • WWZFwQa5TKOK42R3Eo8rsw

  1. Wood industry: Stereo Wave Plate Processing, cabinet doors, solid wood doors, Craft wood door, paint free door, folding screen, craft window, shoe-cleaning machine,

    game cabinet, mahjong table, computer table, and panel-type furniture assistance processing.
  2.  Advertisement industry: Advertisement label and logo, Acrylic cutting and blister molding, Multi Ad. Material and decoration products processing.
3. Mold industry: Engrave on material like brass, Al, and Iron to make metal mold. And it can engrave on artificial Marble, gravel, plastic board, PVC pipes, wood, and alike Non-metal mold.

4. Other industry:Engrave all kinds of image engraving and relief engraving. It is widely used art & craft industrindustries: The building model, the block, aviation block, propellers, car foam mold.


PCStw2Q2SzSFx3cI46zQ-A


Please check working video on line now:

https://youtu.be/8F2vRHbZDxw?si=8jEZTpRXnG7zgTXV
