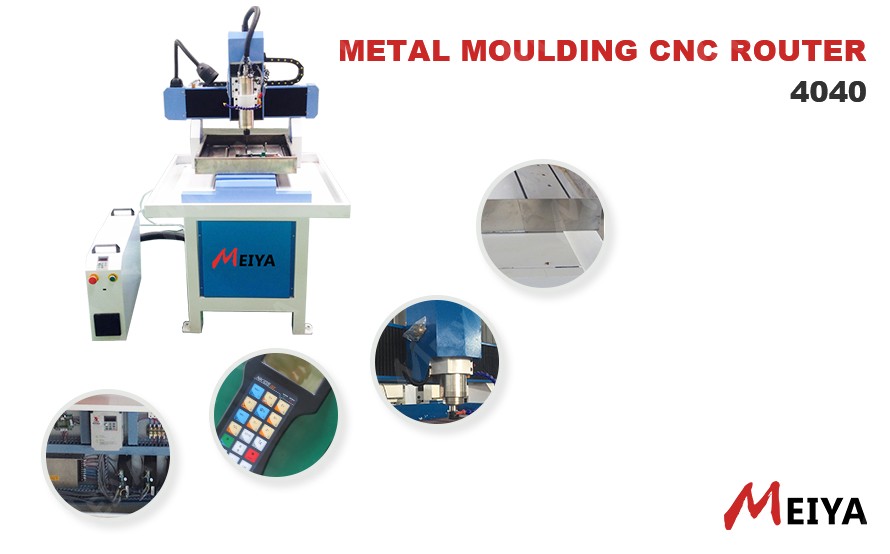

China small Mini Metal engraving machine with water tank

Tel：+86 13176656080

Email：info@meiyacnc.com

WhatsApp：+86 13176656080

Product Details

Product Brief Introduction

1.The machine body structure adopt cast iron, the rigidity is good, not easy to be deformed, to make sure the machine’s stability

2.Well compatibility: compatible for software CAD/CAM, such as type3/artcam/JDPaint/proe/ug.rtc

3.Heavy loading, non-deformation, adopting imported double nut screw to ensure the engraving speed. Adopting Taiwan’s high-precision square linear guide,

effectively imported the precision of carving.

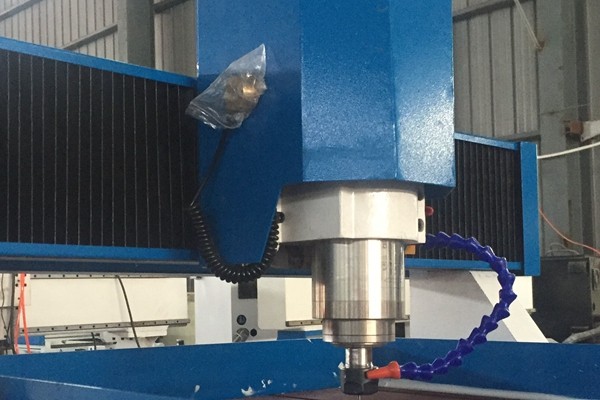

4.Adopt high-speed water cooling motor with invariably power, big torque,strong cutting, high-frequency and long-life.

5.Available for continuous work for a long time.

Traveling size	X Working Area	400mm
	Y Working Area	400mm
	Z Working Area	150mm
Accuracy	Working Accuracy	±0.01mm
Accuracy	Repositioning Resolution	±0.01 mm
Table	Surface	PVC
Transmission	X/Y Axis	Taiwan HIWIN square guide
Transmission	Z Axis	Taiwan TBI ball screw
Structure	Lathe Structure	Integral cast iron
Speed	Rapid Travel Rate	15000mm/min
Speed	Working Speed	8000mm/min
Spindle	Spindle Power	2.2KW water cooling spindle
	Spindle Speed	0-24000rpm
	Inverter	Fuling inverter 3.7KW
Working	Drive motor	Stepper motor 450A
Working	Command Language	G code
Others	Working Voltage	AC220/50HZ
Others	Operating System	DSP NK105
	Compatible Software	Artcam(option:Type3,Ucan)
Weight	Gross weight	350kg
Weight	Net weight	300kg
package	1. Protective film package and fumigation-free wooden case.2. OEM and package can according to customer requirements.

Metal Cutting Materials:

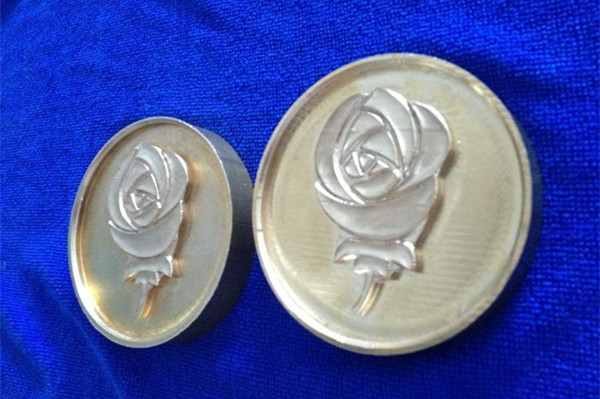

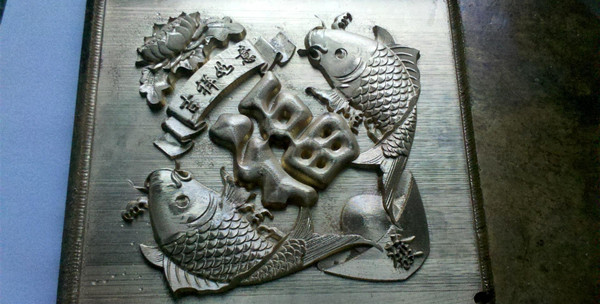

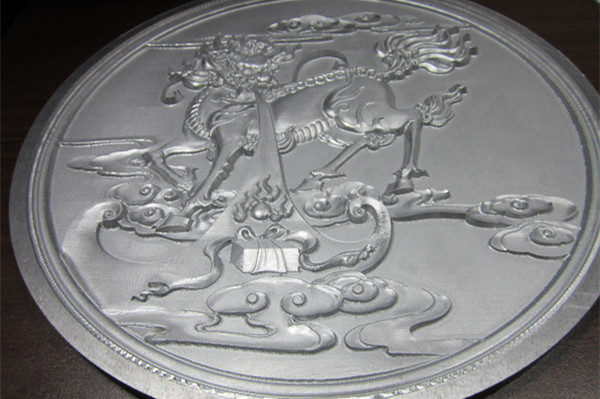

Mainly applied in various types of mold and model processing .which processing on man-made stone ,copper ,aluminum ,iron ,plastic and wood

Applied Industry: metal molds, bronze, embossed mold, wooden mold, three-dimensional model making, etc.
