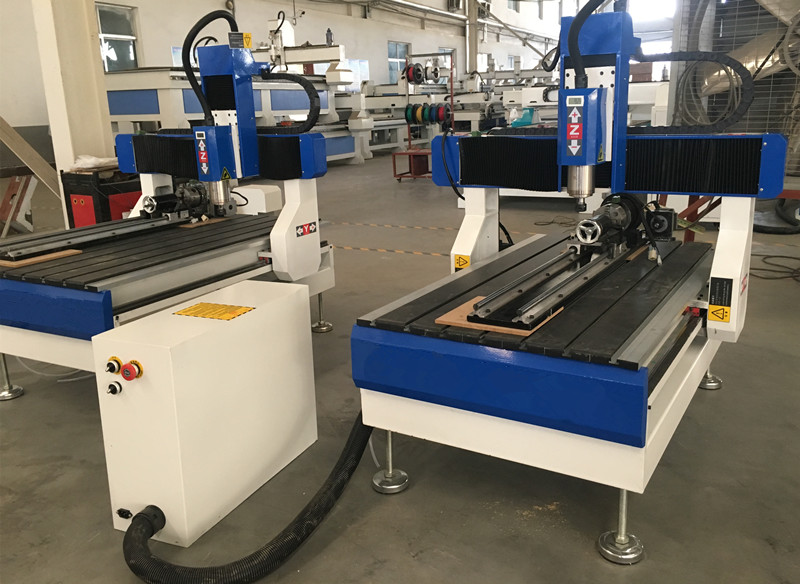

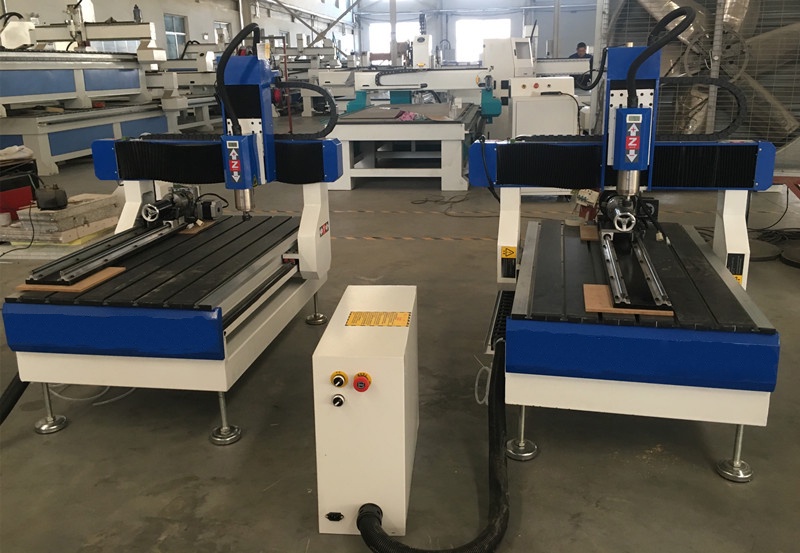

Desktop 6090 4 Axis CNC Router Mini CNC Milling Machine for Aluminum Brass Wood MDF Acrylic Plywood

Tel：+86 13176656080

Email：info@meiyacnc.com

WhatsApp：+86 13176656080

Product Details

Features:

The biggest advantage of our machine is the bed of the machine is iron cast. which is hardly deformed,it can maintain high precision for a long time. It allow the

customer not only process softwood such as wood, MDF, plastic, acrylic, but also can allow the customer process metal and stone. The machine is very heavy,

so it won't shake during process hard material.

It is desktop style, which only need small space for it. Although it is small but is still a high quality machine, all the machine body is iron cast structure, which is

with strong rigidity. The machine can process many different materials, such as: wood, acrylic, MDF, plywood, ABS, OSB, foam, aluminum, stone, etc.

Main parts：

※ Heavy iron cast machine structure
※ 2.2kw water cool spindle
※ Easy to use Mach 3 Controller or DSP
※ Aluminum T-Slot and PVC Table
※ Hiwin square rail
※ High precision TBI Ballscrew

Technology data:

Number	Description	Pparameter
1	XYZ working area	600900200mm
2	Table size	740*1120mm
3	XYZ travel positioning accuracy	±0.05mm
4	XYZ repositioning positioning accury	±0.05mm
5	Gantry	cast-aluminium
6	lathe structure	Square lathe tube
7	drive system X-Y axis	Ball screw Taiwan TBI
8	drive system Z axis	Ball screw Taiwan TBI
9	Spindle power	2.2KW water cooling spindle
10	Max velocity	8m/min
11	Max working speed	6m/min
12	Spindle speed	0-24000rmp
13	work mode	Stepper motor 450A
14	Working voltage	AC220V,50HZ
15	Command language	G code
16	Interface	USB
17	Operating system	Mach3
18	Inverter	Fuling inverter
19	X-Y resolution	0.025mm
20	Software	Artcam
21	Running environment	Temperature:0-45°C
22	Packing size	155011401450mm
23	Net weight	250kg
24	Gross weight	300kg

Mach3 control system:Mach 3 turns a typical computer into a CNC machine controller. It is very rich in features and provides a great value to those needing a CNC control package. Mach3 works on most Windows PC to control the motion of motors (stepper & servo) by processing G-Code. While comprising many advanced features, it is the most intuitive CNC control software available.

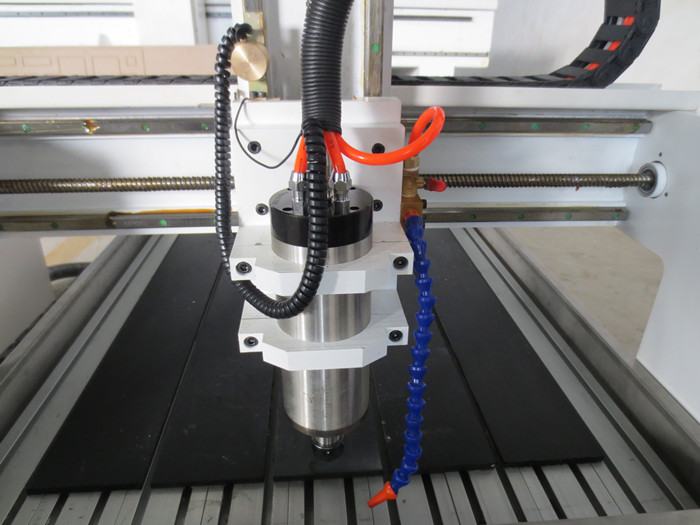

2.2KW water cooling spindle:This precision spindle requires no maintenance, uses industry standard ER collets. Fully programmable speeds from 6000 to 24000 RPM.
Stepper motor 450A: These motors require no regular maintenance, therefore reducing any maintenance downtime.

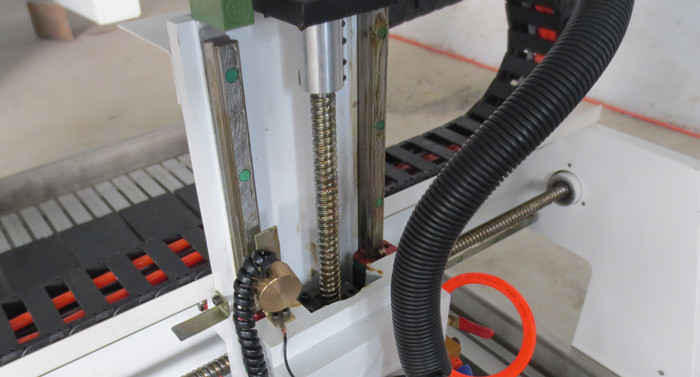

XYZ axis TBI ballscrew transmission:The machine adopts Taiwan Hiwin square rail, which is more than twice durable. And the use of high quality ballscrew, makes it high precision.

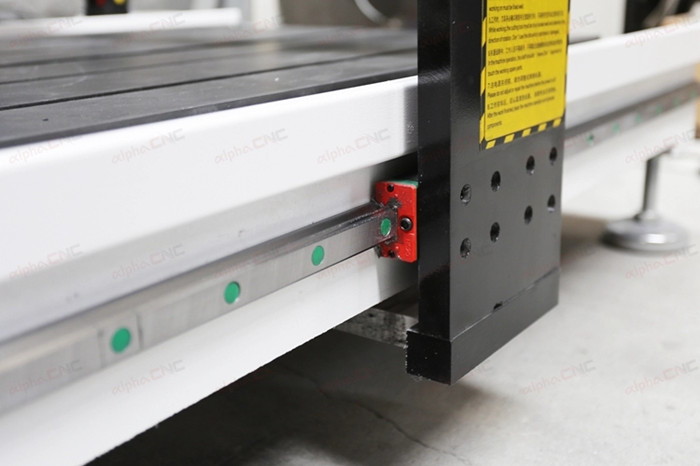

X Y Z Axis Hiwin square rail:The machine adopts Taiwan Hiwin square rail, which is more than twice durable. And the use of high quality ballscrew, makes it high precision.

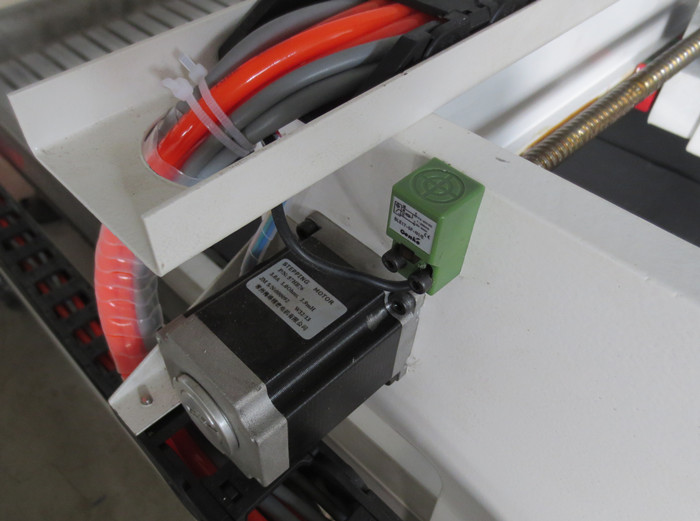

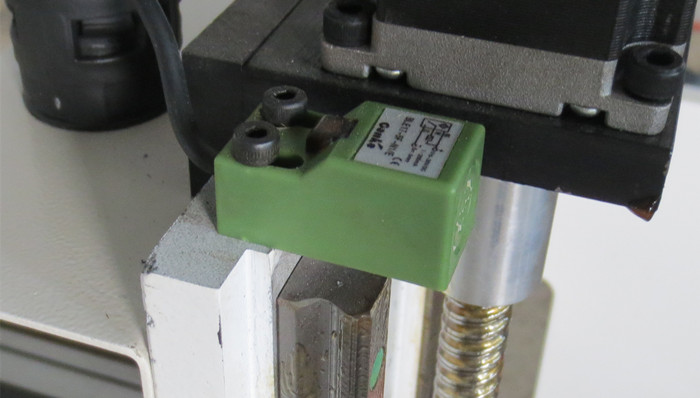

Japan Omron limited sensor:There is Japan Omron limited sensor on XYZ axis. The sensor will avoid the machine overtravel working. OMRON is the best quality and with longer service life.
