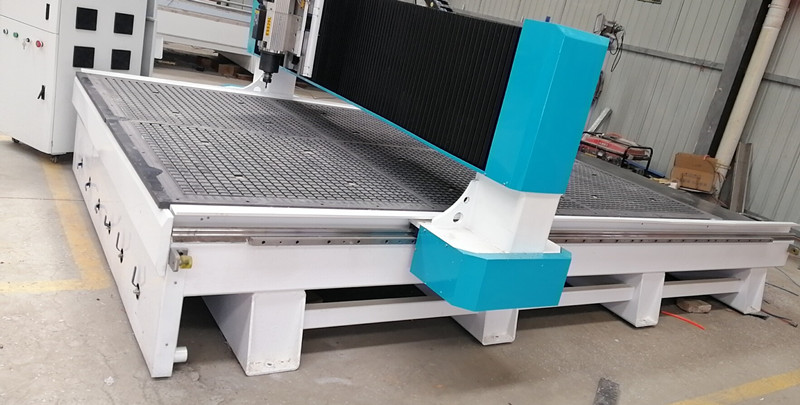

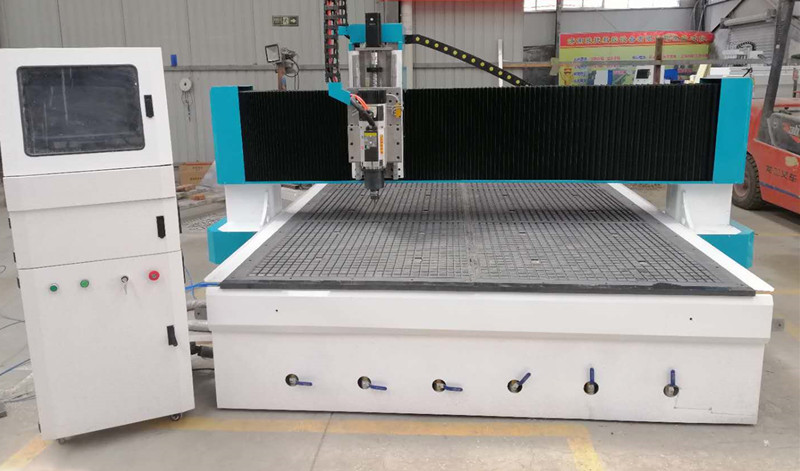

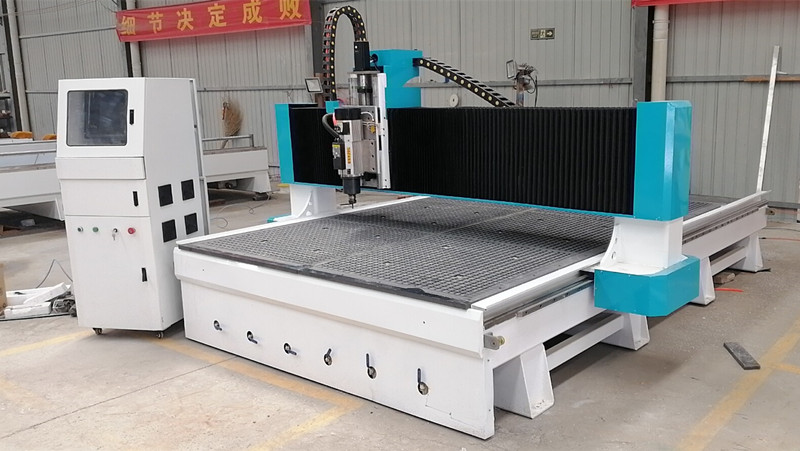

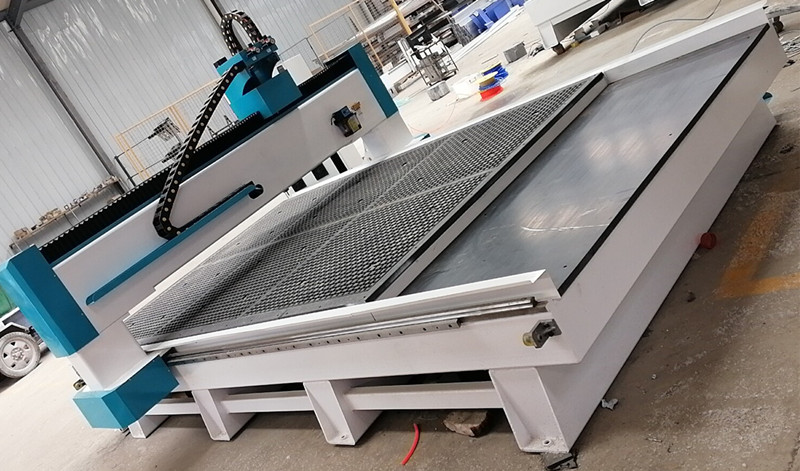

large size 2040 wood router woodworking cnc router machine cnc router

Tel:+86 13176656080
Email:info@meiyacnc.com
WhatsApp:+86 13176656080
Product Details
  • wLWTcFuKQ96EIZaRjpUMMA
  • JFPT0eUoSWq_X3ft_wdbWg
  • -IARh42MReK1JZsc6nbVKQ
  • 7vTDlqGxSWOvqdQNq7gAAQ
1.integral welding body, high inflexibility structure design, material stress analysis&forming by heat treatment, avoid deformation.
2.using square guide rail, rack pinion has a high speed, X rail adopt pop dust proof structure, ensure the machine has a long-term operation, spindle is air cooling.
3. equipped with professional vacuum system, adopt integral adsorption base, with the high strength engineering- plastics surface, one-time forming, adopt high-power professional vacuum pump, strong adsorption capacity.
4. high power 9KW spindle from Italy, low sway in axial, strong cutting force, long lifetime, low noise, with linear ATC library of 6pcs, you can optional 4pcs, 6pcs, 8pcs.

5.Compatible software CAD/CAM, such as Type3, ArtCam, Castmate, UcanCAM, Artcut engraving software, Coredraw, etc. It can manufacture fancy embossment, and 3D arts.


ModelMYM-2030/2040
Working Area2000*3000/2000*4000mm
Spindle9KW air cooling spindle
TableVacuum suction Table
TransmissionRack and pinion forxy,ball screw forz
GuidewayHIWIN/AMT/PMI linear guideway
Resolution0.01 mm
Speed20 m/min
InverterFuling brand from Shenzhen
DriverBig power 450B stepper motors and 860 leadshine driver
CodeG Code,HPGL Code
Working delicacy0.01mm
Re positioning accuracy0.005mm
Power SupplyAC220V/50Hz
Controlling SystemNCStudio Control System
SoftwareArtcam or Type3
Software EnvironmentWindows XP
PackingWooden Box
Packing size3.4*2.1*2.2m(approximately estimating)
Net Weight1300 kg
Gross Weight1500 kg
Applicable Materialswood,PVC,acrylic,MDF,and aluminum,copper,aluminum composite panel,etc.
Shipping portFrom Qingdao
PaymentTT with 30%in advance and the balance need to be paid before shipping
Delivery time13 working days
Warrantythree year


Applicable to the cabinet door, solid wood doors, computer desk, panel furniture, etc. Can be used forlarge area, large output of density board

and solid board the plane of the engraving, cutting, such as 3Drelief workers.

_nSqrVhNQC-DnD6ByBqOQw

A. Technical support:
1. Technical support by phone, email or MSN/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas


B. After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and

consultation, technical support and service by email/WhatApp etc

C. Guarantee:
Three year for the whole machine. Within two year under normal use and maintenance, if something is wrong with the machine, you will get spare part by air.

You will get technical support and service all the lifetime.
