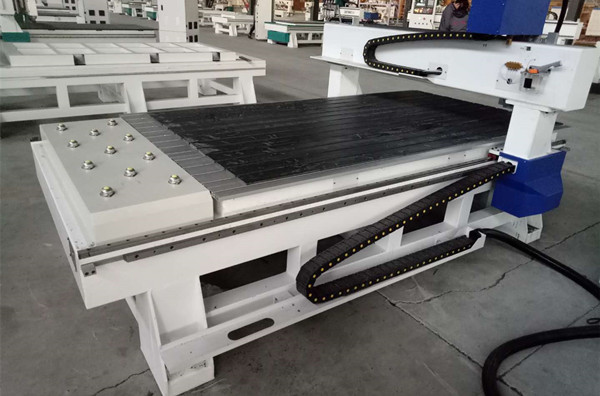

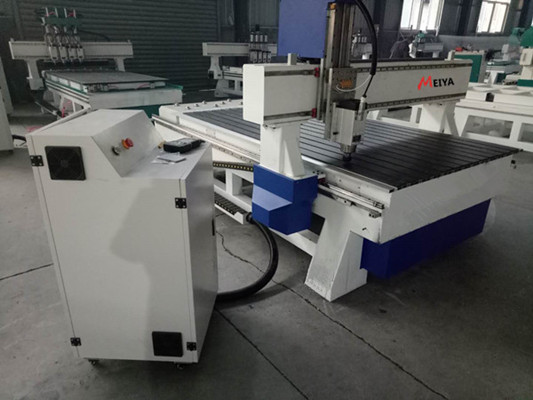

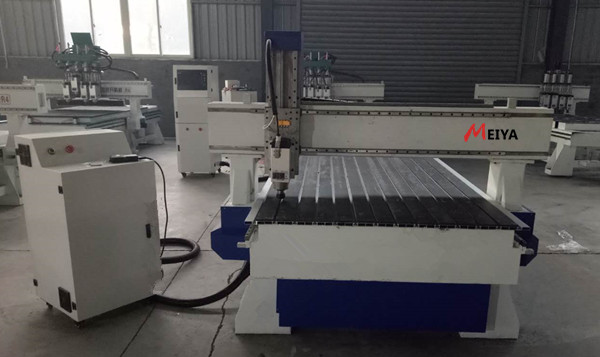

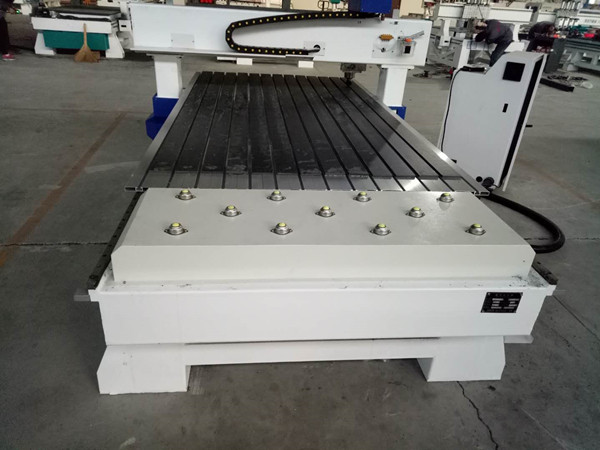

Heavy duty 3d cnc router cnc wood engraving machine

Tel：+86 13176656080

Email：info@meiyacnc.com

WhatsApp：+86 13176656080

Product Details

1.With 3.5KW air cooling spindle more power
2.DSP NK105 Control System, not need connect to PC,be easily operate and learned
3.Transmission, X Y gear and rack transmission, Z Taiwan TBI ball screw transmisson.
4.Guide Rail for X Y Z,TAIWAN HIWIN Square Rail

5.Stepper motor 450B and Leadshine drivers M860, high positioning accuracy;good reliability;save power consumption

Product name	professional double heads woodworking cnc machine
X,Y,Z Working Area	1300x2500x250mm
X,Y,Z Repositioning Accuracy	±0.05mm
Table Surface	Vacuum Table
Frame	Welded structure
X, Y axis transmission	Helical Rack and Pinion gear
Z transmission	Ball Screw Taiwan TBI
Rail Configuration	20 square rail
Max. Traveling Rate	25000mm/min
Max. Working Speed	15000mm/min
Spindle Power	3.5KW air cooling spindle
Spindle Speed	18000RPM
Drive Motors	Stepper Motor 450B
Working Voltage	AC380V,50/60HZ,3Phase(Optional 220V)
Command Language	G Code
Operating System	DSP NK105
Computer Interface	USB
Software Compatibility	Artcam (Option:Type3,JD Paint)
Packing Size	Plywood case
N.W.	1300KG

Furniture industry: wooden doors, windows, folding screens, tables, chairs, and many other materials such as plastic board, PVC sheet, dual color board, aluminum, etc.

Mainly for the production of cupboard door, real wooed, the furniture and so on, also can be used in the production of MDF cutting.
