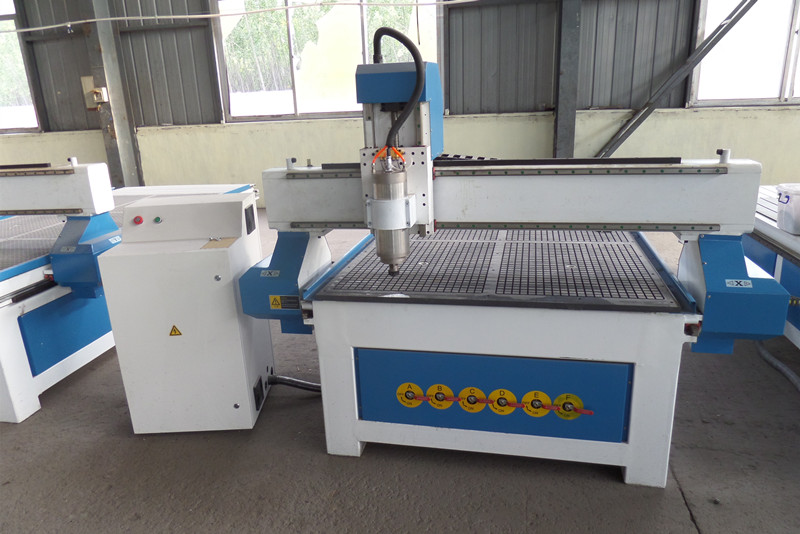

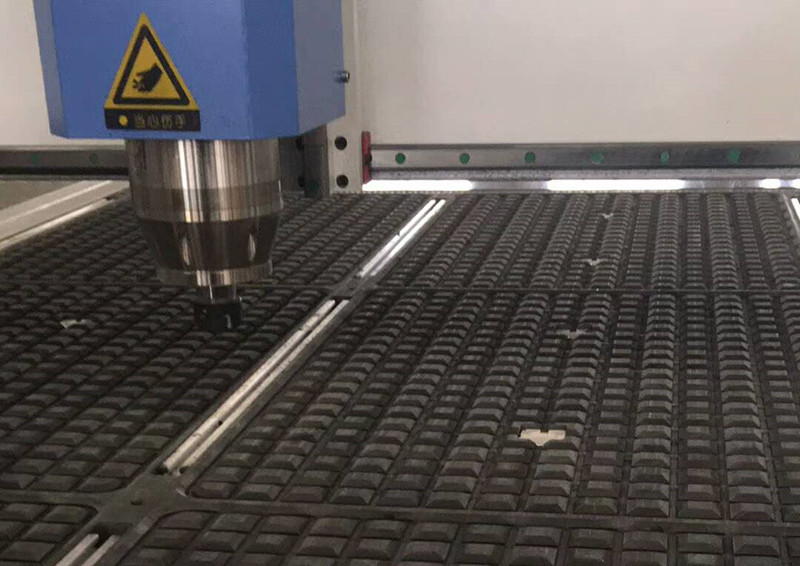

Spindle type:

Water cooled spindle

Spindle power

3kw

Spindle rotating speed

0-24000rpm

Power (except spindle power)

6.8KW (include powers of: motors, drivers, inverters and so on)

Power supply:

AC380,50/60HZ,3Phase(optional 220V)

Worktable:

T-slot working table

Locating precision:

<0.01mm

Min shaping character:

Character:3x3mm,letter:2x2mm

Operating temperature:

5°C-40°C

Working humidity

30%-75%(without condensed water)

Working precision

±0.03mm

System resolution

±0.001mm

Control configuration:

Weihong DSP NK105 control system

Data transfer interface:

USB/PC

System environment:

WINDOWS 2000/WINDOWS XP/ windows 7

Spindle cooling way:

Water cooling by water pump (optional: chiller)

Graphic format supported:

G code: *.u00, * mmg, * plt, *.nc

Compatible software

ARTCAM(Optional UCANCAM ,Type3)

Cutting thickness:

0-40mm also (depends on different material)

Z tool censor:

yes

Whole machine dimension:

3170x2070x1800mm

Net weight:

1000KG

Gross weight

1200KG

packing

Plywood case (veneer wood case for export)

Optional parts

1. Air cooled type spindle (China brand or Italian brand)2. Bigger or smaller power spindles (6kw or 3kw)3. High-grade cooling system (chiller, it has alarming system)4. double-head or more heads5. servo motors (China brand or Japan brand)6. Auto tool change system (this system need other systems accordingly, like LNC control system, servo motors etc)7. Mach3 or Ncstudio control system8. other customerized features.
