Big machine size wood cnc router 2030 cnc engraving machine

Tel：+86 13176656080

Email：info@meiyacnc.com

WhatsApp：+86 13176656080

Product Details

# Working area : 2000*3000*200mm

# spindle : 3.0KW China water cooling spindle

# table : Vacuum table and 7.5KW vacuum pump

# transmission : X, Y axis helical rack and pinion drive, Z axis Taiwan TBI ball screw drivew

# inverter : 3.7KW Fuling inverter

# stepper motor 450B and Leadshine M860 driver

# square linear guides

# control System : Weihong NK105 DSP

# Software: Artcam

number	Description	parameter
1	XYZ working area	20003000200mm
2	Table size	2180*3500mm
3	XYZ travel positioning accuracy	±0.05mm
4	XYZ repositioning positioning accury	±0.05mm
5	Table surface	vacuum table
6	grantry	steel
7	drive system X-Y axis	Rack actuation
8	drive system Z axis	Ball screw
9	Spindle power	3.0KW water cooling spindle
10	Max velocity	50m/min
11	Max working speed	25m/min
12	Spindle speed	0-24000rmp
13	work mode	stepper motor 450B and leadshine driver M860 (optional servo)
14	Working voltage	AC380V/220V
15	Command language	G code
16	Interface	USB
17	Operating system	DSP(Ncstudio/Mach3)
18	Flash memory	128
19	X-Y resolution	0.025mm
20	Software environment	Artcam
21	Running environment	Temperature:0-45°C
22	Paking size	375021502200mm
23	Net weight	1700 kg
24	Gross weight	2000 kg

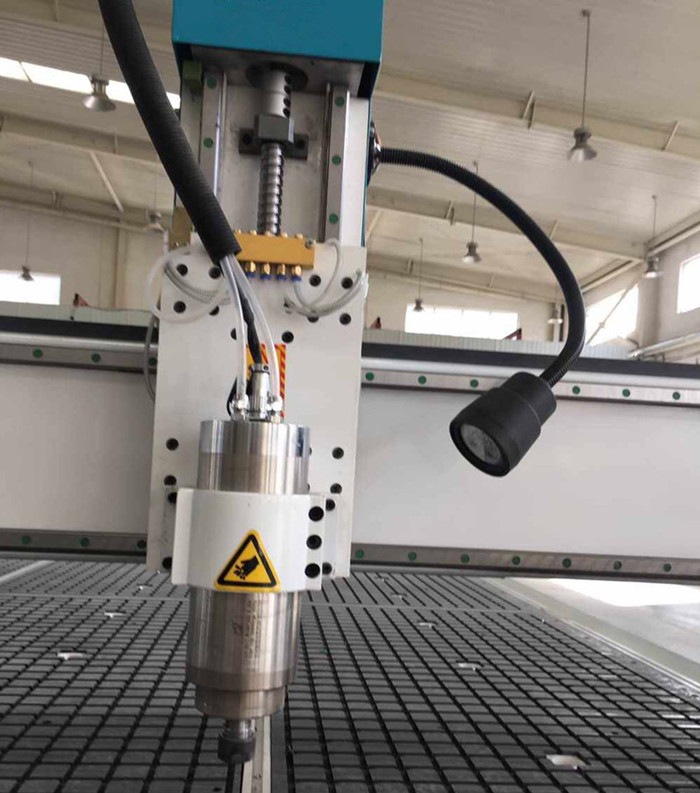

3.0KW water cooling spindle

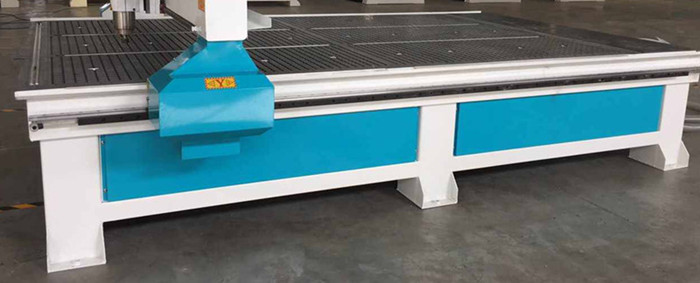

Vacuum table and 5.5KW vacuum pump for absorp the material better

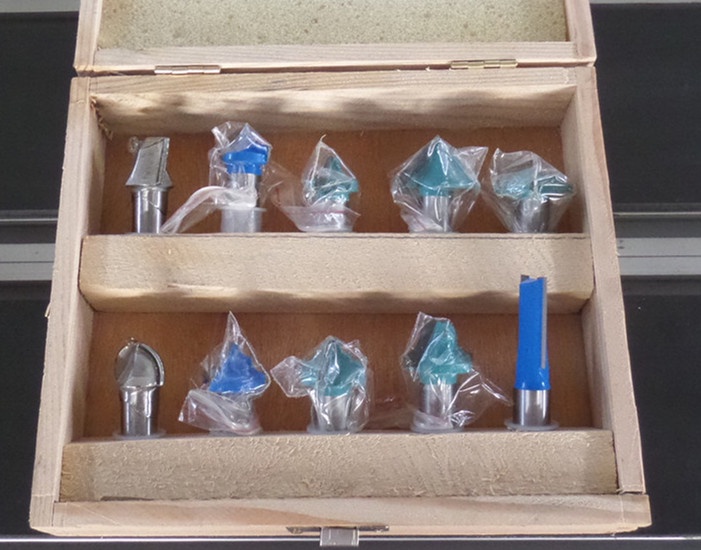

special wood cutting and engraving tools

1. WoodFurniture Industry:

Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2.Advertising industry:

advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3.die industry:

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

4.relief sculpture and 3D engraving
