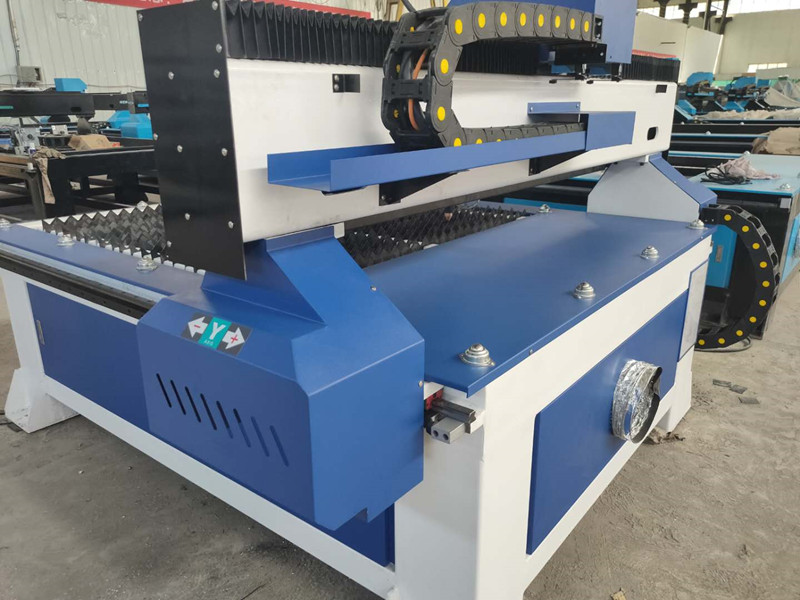

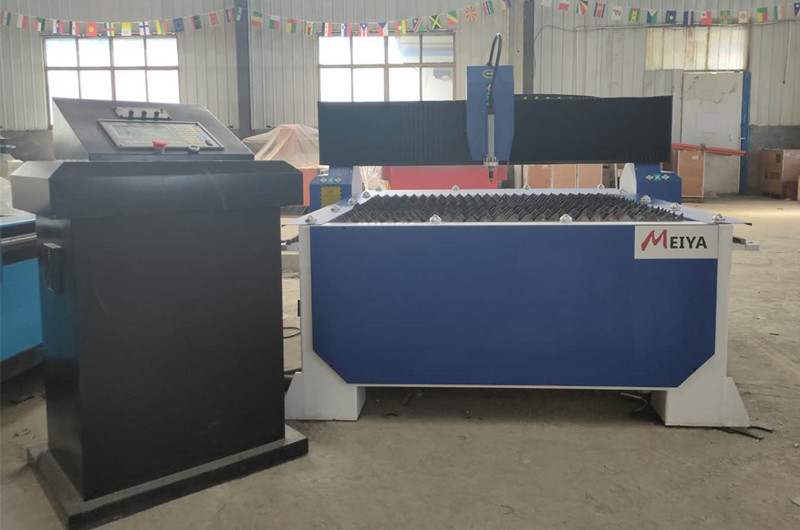

1.The machine is all welded as seamless steel structure. Steady structure and long life time
2.High configuration, high cutting speed and precision.
3.Beijing START / STARFIRE control system, Steady performance.

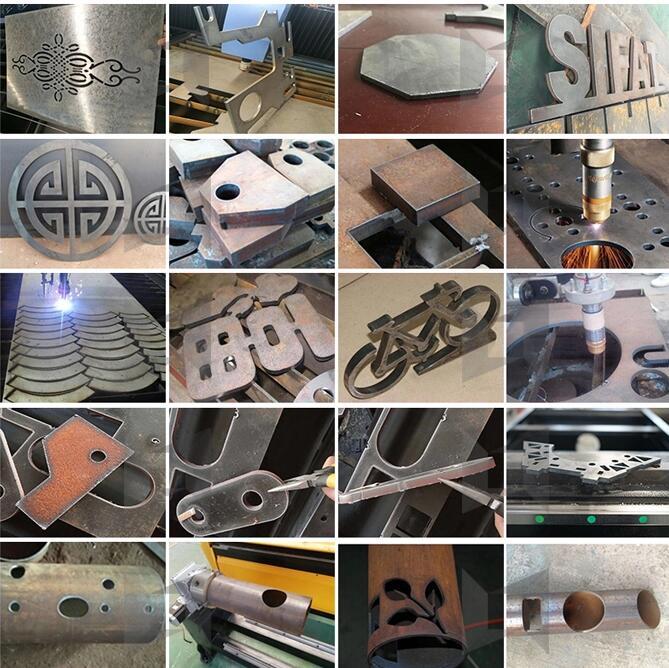

4.Cutting material: steel, copper, iron, aluminum, galvanized sheet, titanium plates, and so on.
5.File format: G-code
6.Suitable Software : ARTCUT, Type3, ArtCAM, FASTCAM.

Main parts:

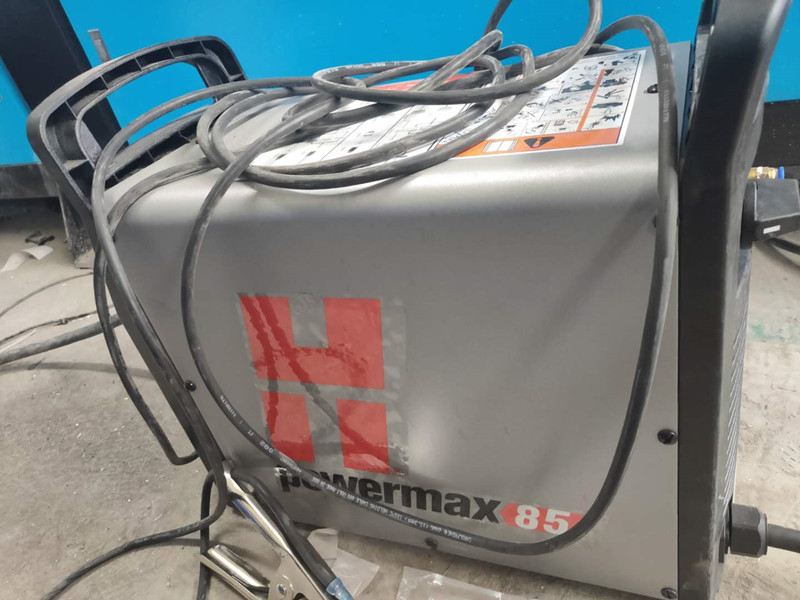

1. Plasma power supply, China made Huayuan brand or USA Hypertherm brand, below are the cutting thickness of different plasma power supply.

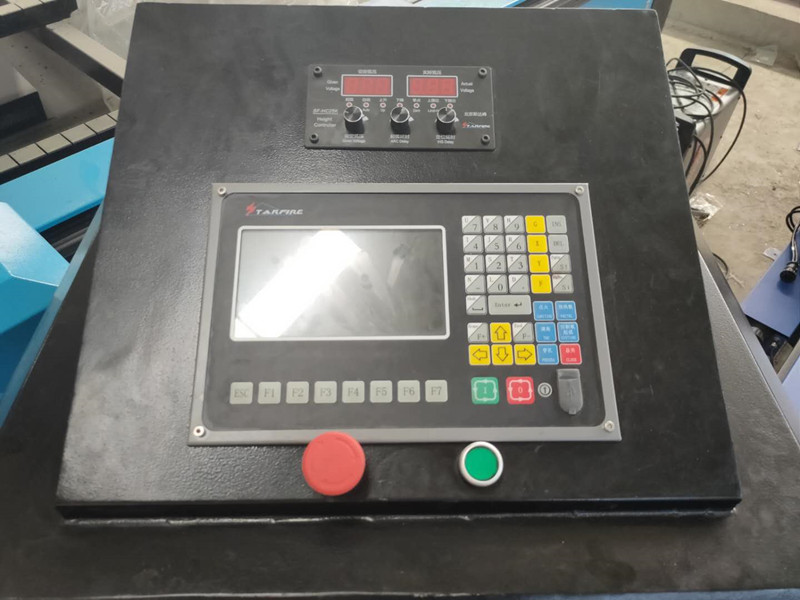

2.STARFIRE/START control system, all is ok , Chinese /English /RUSSIAN/Spainsh/French/Czech/Janpanese/Slovakian etc.

version for your choose ,so you don't need worry about operate problem regardng language.

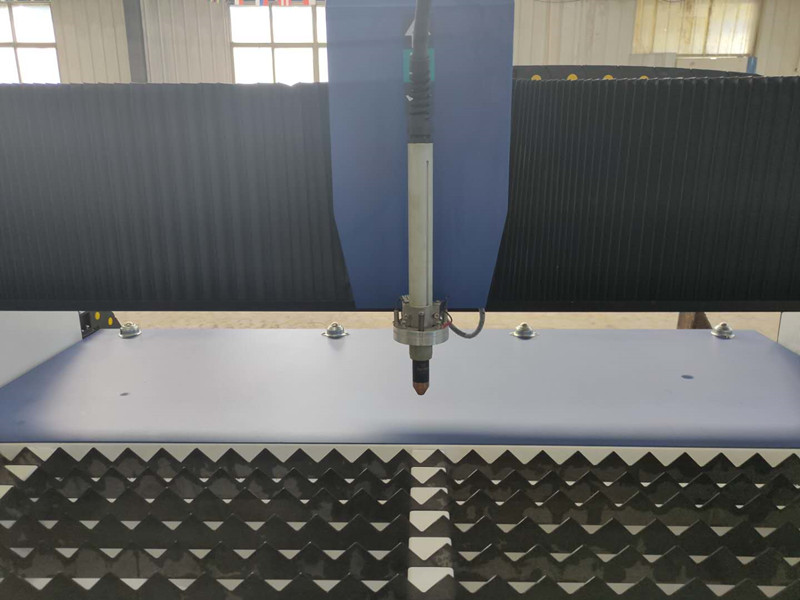

Automatic torch height controller, with this function , the torch can up and down with automatic regarding the sheet radian ,

so through your sheet is not flat , you also don't need worry the torch will collide the sheet , then to protect the cutting torch

and ensure the cutting performance.

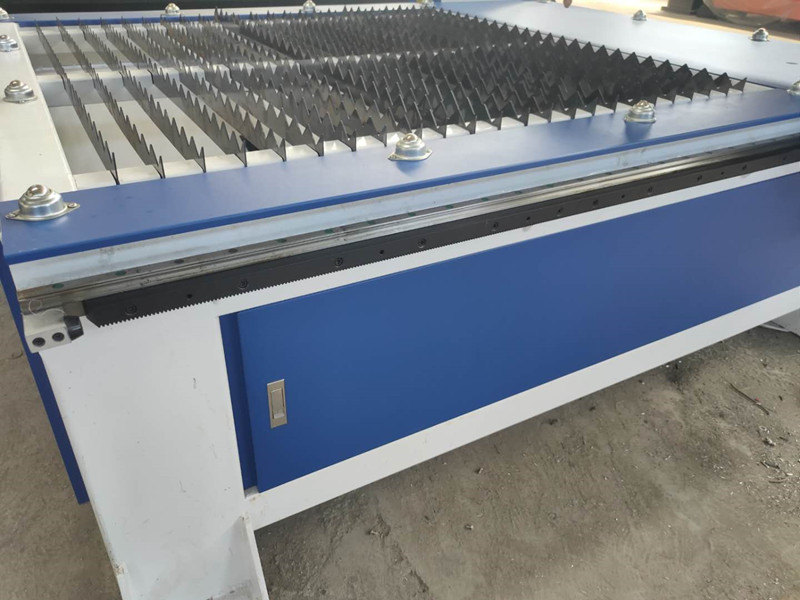

3. Sawtooth worktable, it can reduce the touch surface of table and metal sheet as much as possible.

The basic components of a CNC plasma metal cutting machine are :

1.Plasma Torch: The device consists of a nozzle, electrode, and cooling system.

2.CNC Control System: A computer-controlled system that controls the torch and the design.

3.Cutting Table ( cutting size): The cutting size refers to the table dimensions, accommodating steel sheets size.

4. Power Supply: Provides electrical power to generate the plasma arc.

5. Gas Supply: Supplies the plasma gas (commonly air, nitrogen, or oxygen).

6.Cooling System: Keeps the plasma torch and other components cool and at optimal temperature.

How does a plasma metal cutting machine work?

Here is the step-by-step process of CNC plasma metal cutting.

1. Design and programming.

The process begins with creating a digital design using CAD ( Computer-Aided Design ) software.

The CAD design is then converted into a format that the CNC plasma machine can understand, typically G-code.

2. Setting up the machine.

The sheet metal is placed on the cutting table. The operator sets up the CNC machine by loading the G-code.

The table size allows for handling large size metal sheets.

3. Initiating the cut.

Start the plasma arc. The arc is established between the electrode and the metal workpiece. The plasma arc melts

the material and pierces the metal at the starting point of the cut.

4.Cutting the metal.

The CNC control system directs the movement of the plasma torch. As the torch moves, the plasma arc melts the

metal along the cutting path.

5. Finishing the metal cut.

Optional parts for more functions:

1). Rotary device for cutting metal pipe, diameter can be 200mm, 300mm, 400mm length can be same along with Y-axis.

2). Flame cutting head, it is easy to change these two heads, the flame head can cut 0-200mm carbon steel
3). with drilling head for cutting different size holes

Technology Support:

Software CD, English manual and training video is available.
During the using machine,if you encounter any troubles, you can contact with us in various way,such as whatsApp ,

Wechat, Messenger, Email, we still stand by 24 hours for you.
parts under “normal use”, new machine parts will be sent by UPS/ TNT/ Fedex etc
Working area for your choose:Working area :1200*1200mm/ 1300*2500mm / 1500*3000mm /2000*3000mm/ 2000*4000mm etc
Power supplier for your choose: power supplier: Hypertherm 45A/65A/85A/105A/125A/200A or Huayuan 63A /120A/160A/200A
