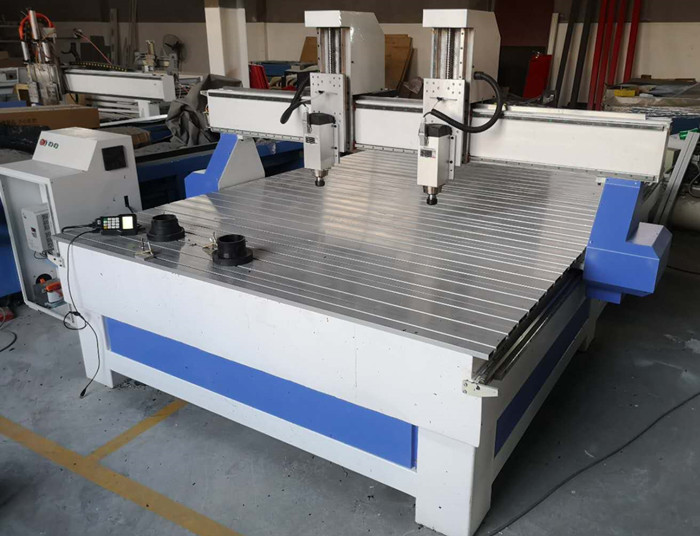

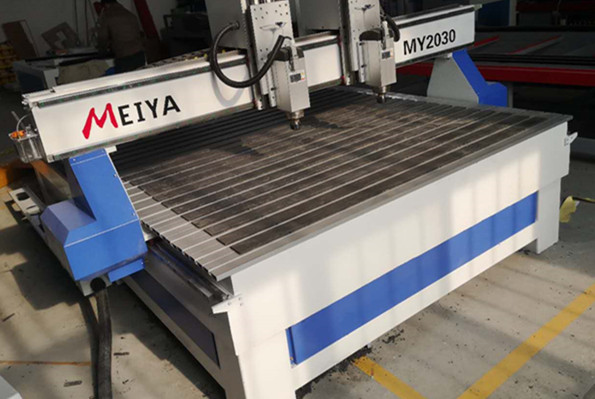

Two Heads CNC Router 2030 with T-slot table

Tel：+86 13176656080
Email：info@meiyacnc.com
WhatsApp：+86 13176656080
Product Details
  • Two Heads CNC Router 2030 with T-slot table
(1). Square tube lathe bed with more solid structure and strong stability because of low center of gravity
(2). T-slot table can fix materials of different sizes.
(3). Taiwan TBI balls screws, HIWIN square guide rails, high precision, large load bearing and stable running.
(4). Gantry-travelling, sturdy, reliable and stable, non-deforming, high locating accuracy.
(5). Richauto DSPA11 is easy to operate and use conveniently
(6). No engraving saw-tooth, smooth undersurface, legible contour, by high-power spindle.
(7). Auto seeking original point system, a good way to improve the working effeciency.

(8). Large compatibility of drawing software, such as Type3, artcam and some other CAD or CAM.


number

Description

parameter

1

XYZ working area

2000*3000*200mm

2

Table size

2180*3500mm

3

XYZ travel positioning accuracy

±0.05mm

4

XYZ repositioning positioning accury

±0.05mm

5

Table surface

vacuum table

6

grantry

steel

7

drive system X-Y axis

Rack actuation

8

drive system Z axis

Ball screw

9

Spindle power

3.0KW water cooling spindle

10

Max velocity

50m/min

11

Max working speed

25m/min

12

Spindle speed

0-24000rmp

13

work mode

step motor 450B and leadshine driver M860 (optional servo)

14

Working voltage

AC380V/220V

15

Command language

G code

16

Interface

USB

17

Operating system

DSP(Ncstudio/Mach3)

18

Flash memory

128

19

X-Y resolution

0.025mm

20

Software environment

Artcam

21

Running environment

Temperature:0-45°C

22

Paking size

3750*2150*2200mm

23

Net weight

1700 kg

24

Gross weight

2000 kg

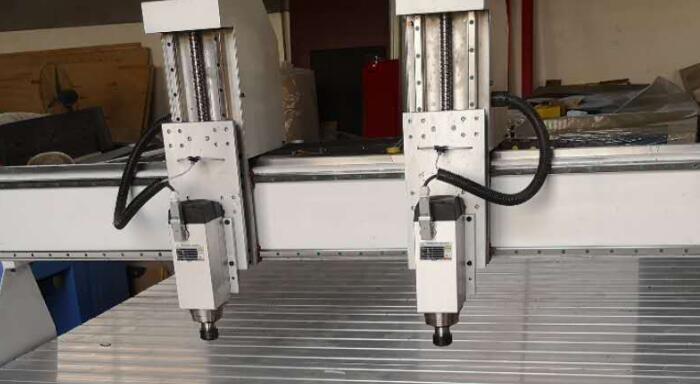

  • Two heads HQD 7.5KW air cooling spindle has very big power and more efficiency
    Two heads HQD 7.5KW air cooling spindle has very big power and more efficiency

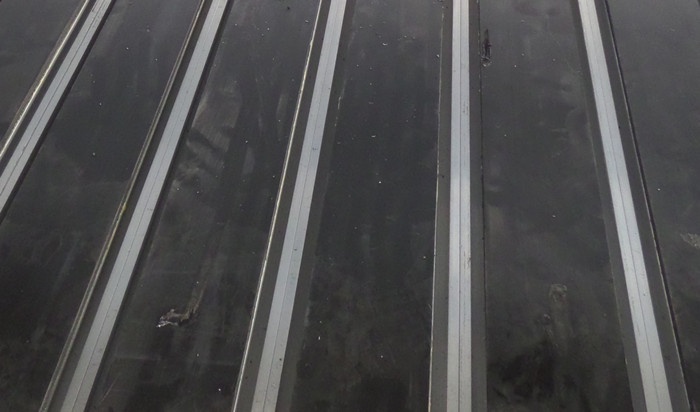

  • T-slot table is more convenient for hard wood,metal,plastic,acrylic,mdf and other kinds of mateiral.
    T-slot table is more convenient for hard wood,metal,plastic,acrylic,mdf and other kinds of mateiral.

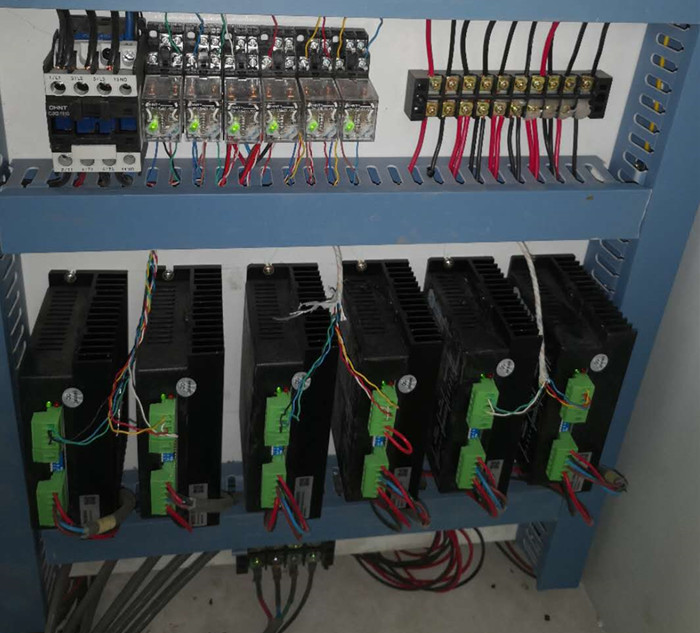

  • Control box provide power for the machine
    Control box provide power for the machine

Wood cnc router is widely used in furniture industry, furniture decoration industry, woodworking decoration industry, musical instrument industry, wooden crafts industry, etc. And this machine is suitable for large area plate engraving, solid wood furniture engraving, solid wood art murals carving, MDF carving and cutting, etc.


---Woodworking Industry: stereo wave board processing, wooden door, various furniture product auxiliary processing.
---Advertising Industry: Advertising label, PVC plate, PCB board (drilling and engraving), Double color boards, logo production, acrylic cutting, plastic suction for making advertising dedication, word cutting, sign making, crystal word, LED display screen, kinds of doorplate, nameplate and so on.
---Mold Industry: Apply for carving various molds, wood pattern, Foam mould, and metal mold, etc.
---Musical instrument industry: instrument 3D surface engraving, shape cutting
---Wooden crafts.
---Exhibition industry: showcase, etc.
