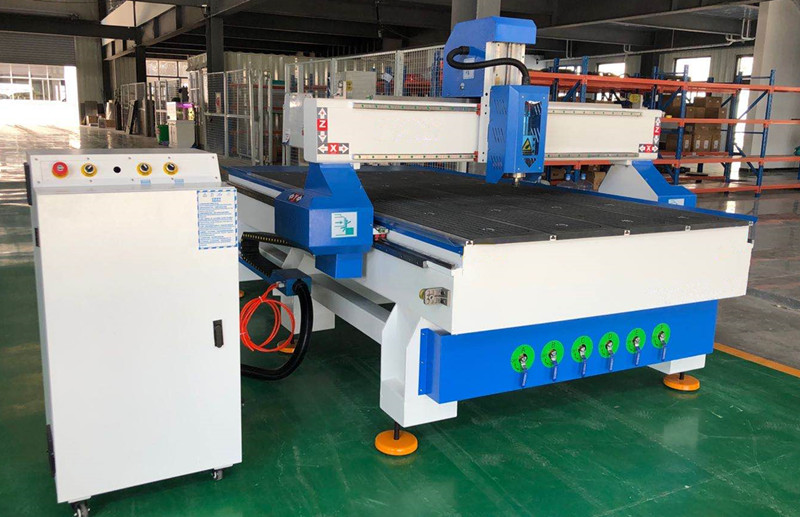

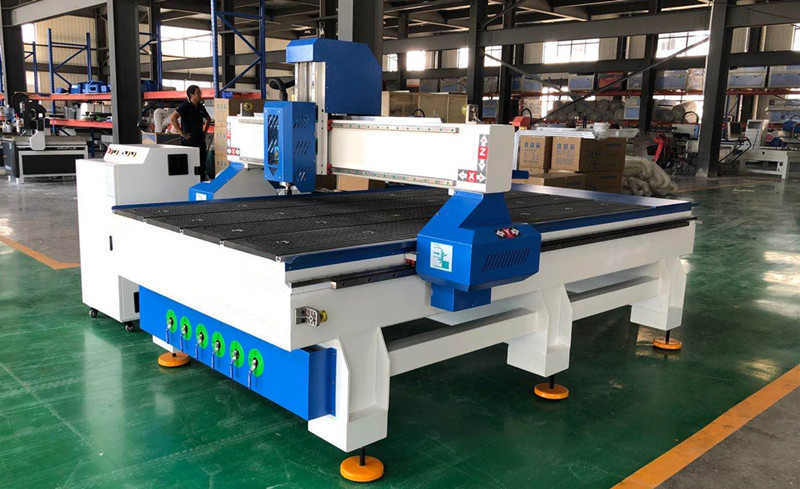

Heavy duty 3 axis cnc router cnc machine wood

Tel：+86 13176656080

Email：info@meiyacnc.com

WhatsApp：+86 13176656080

Product Details

X,Y,Z Working Area	18002500200mm
Table Surface	T-slot Aluminum +PVC or Vaccum absorption table
X, Y Structure	Oblique rack gear transmission
Z Structure	HIWIN Rail Linear Guide and TBI Ball Screw
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z Repositioning Accuracy	±0.03mm
Max. Power Consumption(Without Spindle)	2.5kw-3kw
Max. Rapid Travel Rate	25000mm/min
Max. Working Speed	18000mm/min
Spindle Power	3kw water cooling spindle
Spindle Speed	0-24000 RPM
Drive Motors	Stepper Motor
Working Voltage r	AC 220V/380V, 50/60 Hz
Operating System	Ncstudio or Mach3 PC Software
Computer Interface	USB
Flash Memory	128M(U Disk)
Software Compatibility	Type 3/Artcam/Ucancame V9 for option
Command Language	G code
Running Environment Temperature	0-45°C
Relative Humidity	30%-75%
X,Y Resolution	<0.01
Inverter	Fuling or Delta
Electrical components	Schneider
Limit switch	Omron
Driver	Leadshine or Yako

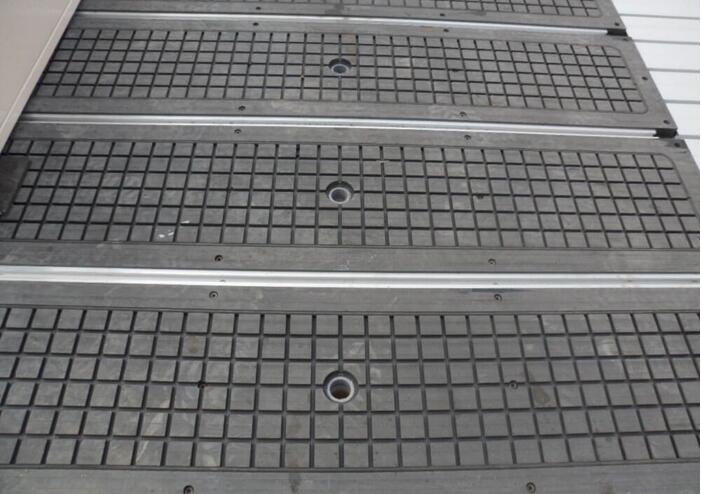

Both vacuum table and T-slot table, more convenient to use

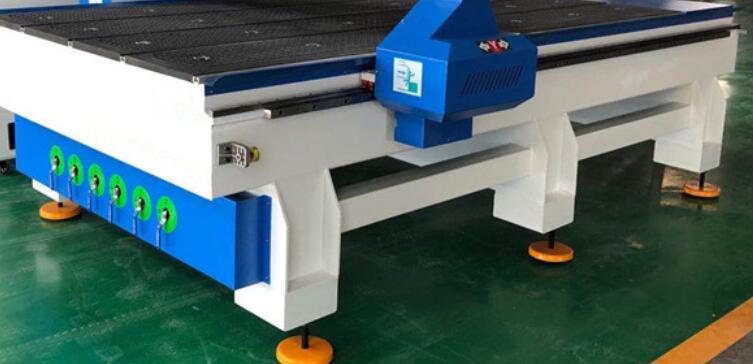

Heavy duty machine structure is more stable and strong with better wood cutting effect.

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.

* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
