Product Details

Description

Parameter

X,Y,Z working area

1300x2500x200mm

Table size (mm)

1450×2940mm

Resolution

±0.02/300mm

Repeatability

±0.01mm

Table Structure

T-slot table

Lathe Structure

Welding steel structure

Rated power of whole machine

6KW

Max. tralling speed

50000mm/min

Max. Working speed

25000mm/min

Spindle power

3.5KW air cooling spindle

Spindle speed

0-18000RPM

Working voltage

AC380V,50/60HZ,3Phase(optioanl 220V)

Command code

G code(dxf,3ds,stl,psd,ai,dwg,bmp,stp,igs etc.)

Operating system

Ncstudio

Interface

USB

Memory

128M

Tool holder

ER25

X,Y,Z working accuracy

0.01mm

Software

Artcam ,Type3,UcancameV9, JD Paint(optional)

Working temperature

Temperature:0 degree-45 degree

Humidity:30%-75% (No Condensation)

Packing size

3300X2100X2300mm

Net weight

1000KG

Gross weight

1200KG

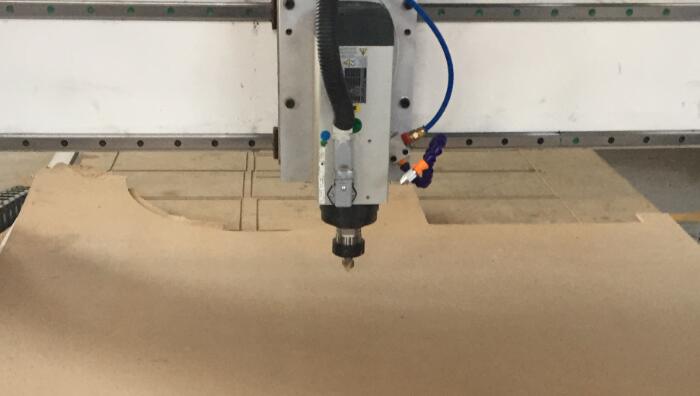

  • Italy HSD 3KW air cooling spindle is the most popular spindle all over the world,has very big power to use.
    Italy HSD 3KW air cooling spindle is the most popular spindle all over the world,has very big power to use.

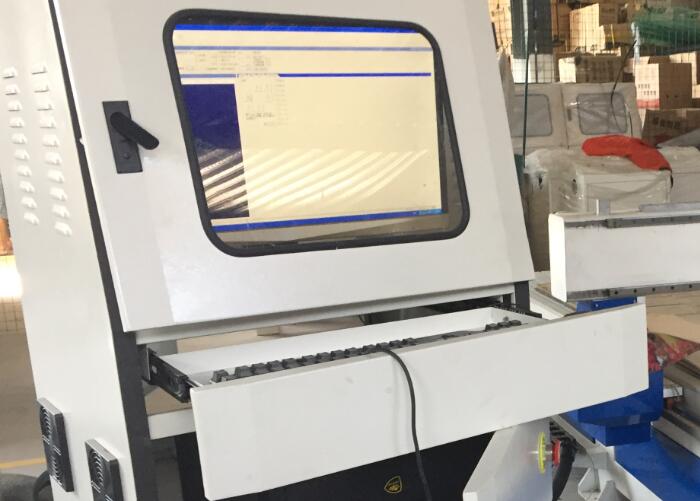

  • Original Ncstudio control system,you could see all work process.when the machine stop and start  Ncstudio control system could let the machine continue to work again.
    Original Ncstudio control system,you could see all work process.when the machine stop and start Ncstudio control system could let the machine continue to work again.

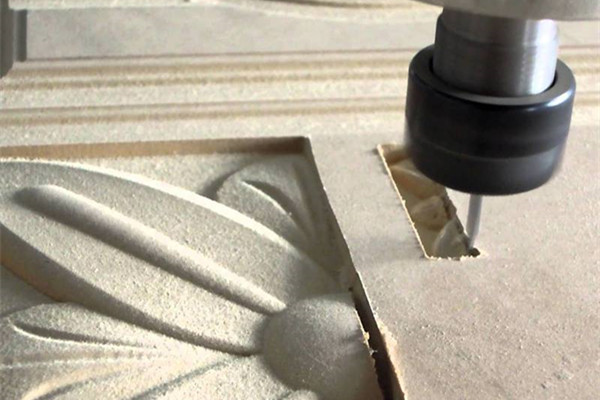

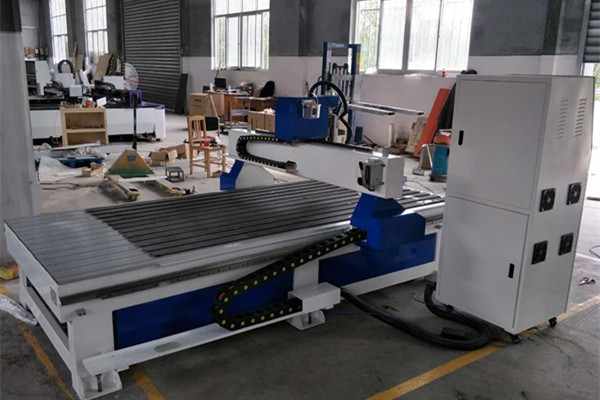

  • 3D CNC Wood Carving Machine With Air Cooling Spindle
    3D CNC Wood Carving Machine With Air Cooling Spindle

Application Material

1. Furniture: plate, office furniture, doors, cabinets.
2. Wood products: speakers, games cabinets, computer tables, sewing machines, musical instruments.
3. Board processing: insulation, plastic chemical components, PCB, car body, bowling track, ABS, PP, PE, etc.
4. Decoration:Acrylic, PVC, MDF, glass, plastic and soft metals such as copper and aluminum.

Applicable Industry

Very popular in: Furniture industry: wooden doors, windows, folding screens, tables, chairs, and many other materials
such as plastic board, PVC sheet, dual color board, aluminum, etc.
