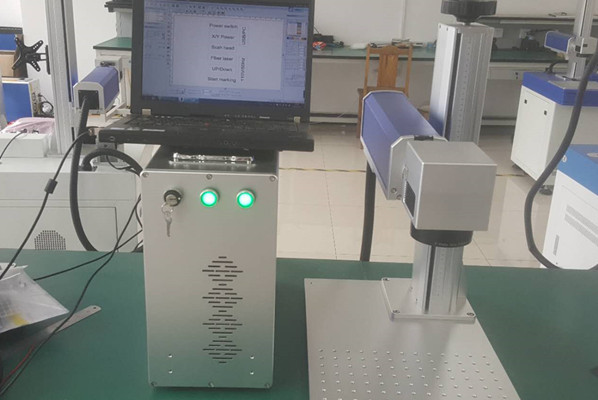

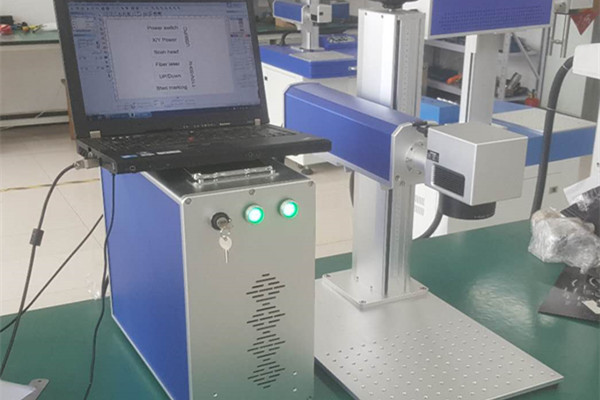

Mopa Color Fiber Laser Marking Machine For Stainless Steel

Product Details

Features Color of stainless steel marking.

Stainless steel, medium and small pulse width,

So M6 plus is going to be more than M1 plus. then can have A variety of color.

1. Generate colorless transparent oxygen.

2.The film, producing interference, showing color;

3. Also generate the colored oxide and the colorless oxide film.

Technical Parameters
Type	MY-20	MY-30
Power	20W /30W JPT Mopa
Laser Wavelength	1064nm
Marking Area	110mm*110mm
Optional Marking Area	175mm*175mm
Marking Depth	≤1.0mm
Marking Speed	800 standard characters/second
Minimum Line Width	0.012mm
Minimum Character	0.15mm
Repeated Precision	±0.003mm
Life-span of Fiber Laser Module	100 000hours
Beam Quality	M2 <1.5
Focus Spot Diameter	<0.01mm
Output Power of Laser	10%~100% continuously to be adjusted
System Operation Environment	Windows XP / W7/ W8/ -32/64bits
Cooling Mode	Air cooling--Built-in
Temperature of Operation Environment	15℃~35℃
Power Input	220V / 50HZ / single phase or 110V / 60HZ / single phase
Power Requirement	<600W
Communication Interface	USB
Machine Dimension/after package (Table type)	600x770x1450mm/870x770x1520mm
Net Weight/gross weight(Table type)	90/110KG
Optional (Not free of charge)	Rotary Device, Moving Table, other customized Automation

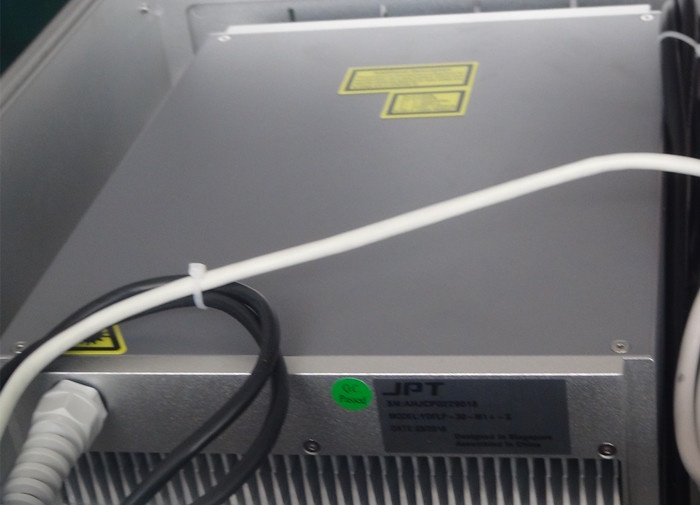

China famous JPT Mopa fiber laser sources, it can maintain the peak power at the same level for different pulse repetition frequency, enables higher beam quality of the laser output.

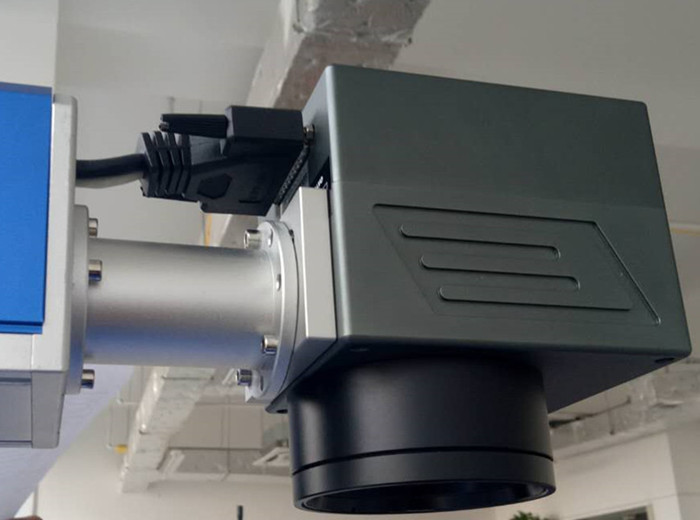

Fast Speed Digital Galvanometer Scanning Head. fast response ability less 0.7ms. can realize high speed makring and high precision

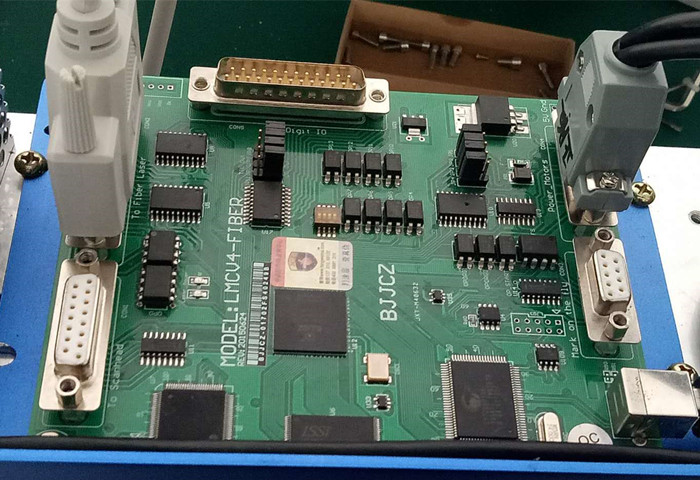

EZ-CAD control system with stable performance and high reliability. the best control system for fiber laser marking machine

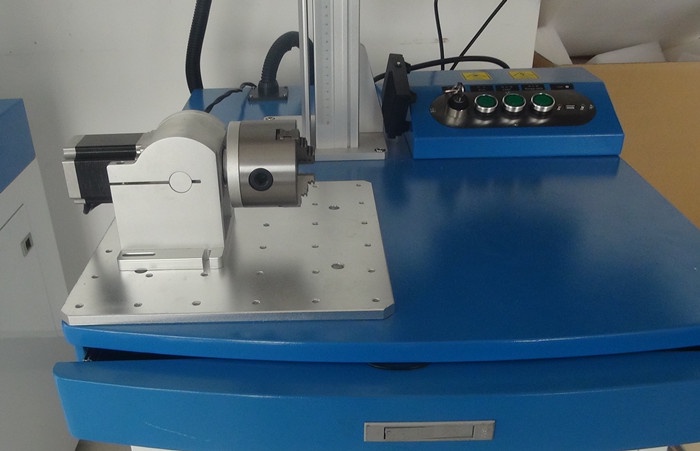

Rotary Device: marking for cylinder or round surface（Optional）
